1200651792, Brad from Molex Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets

Brad® Micro-Change® single ended pigtail female cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® M12 single ended female cordsets are available with straight or right angle connector configurations with a variety of cable types.

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Cable Types:
80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C
80xxxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
80xxxxxH09xxxx: Black PUR jacket, 0.34mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
Configuration:
803000, 804000, 805000, 80800: Female Straight
803001, 804001, 805001, 808001: Female Right Angle

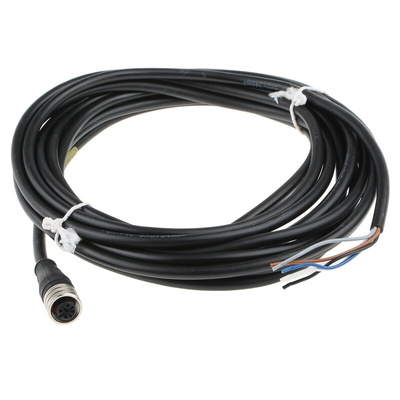

Brad from Molex Straight Female M12 to Free End Sensor Actuator Cable, 5m Length - Micro-Change Series - 1200651792

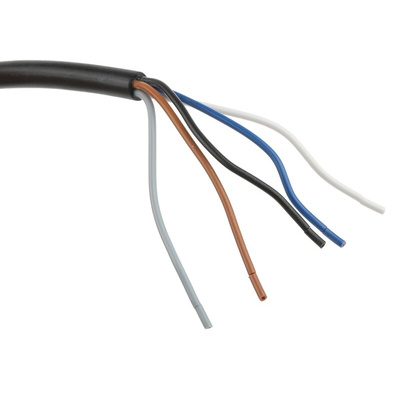

Extend the reach of your sensor connections with this Brad from Molex cable. It has a length of 5 metres, so provides an ample supply for sensors and control units set apart from one another. The unit comes with an M12 connector on one end and unterminated wires on the other. You can use the loose end to link the cable to an existing connection or terminate it with an adapter of your choice and establish a new channel. The cable's copper alloy contacts are highly conductive, so you be sure of a reliable connection.

• IP67 (ingress protection) rating indicates resistance to dust and immersion in up to 1m of water
• Wide operating temperature range of -20°C to +80°C for use in both hot and cold environments
• Can function optimally with both AC (alternating current) and DC (direct current) supply voltages for versatility

Applications

• Filling and mixing equipment
• Industrial conveyors

Is this cable assembly vibration-proof?

The cable has a nickel-plated brass coupling nut used to lock it into a connection port. This prevents accidental disconnection and makes it a safe choice for use with vibrating equipment.

BRAD - M12

Micro-Change M12 5P female cordset, 5m - Customer Drawing

Datasheet - 1200651792
