1200060649, Brad from Molex Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 10m, Кабельная сборка

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets

Brad® Micro-Change® single ended pigtail female cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® M12 single ended female cordsets are available with straight or right angle connector configurations with a variety of cable types.

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Cable Types:
80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C
80xxxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
80xxxxxH09xxxx: Black PUR jacket, 0.34mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
Configuration:
803000, 804000, 805000, 80800: Female Straight
803001, 804001, 805001, 808001: Female Right Angle

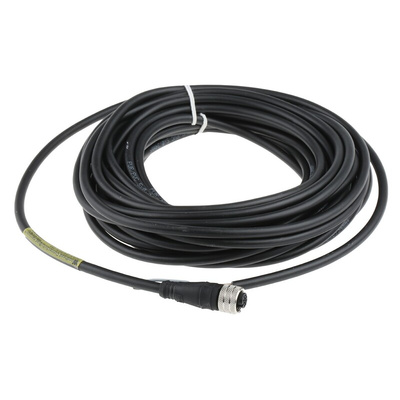

Brad from Molex Straight Female M12 to Free End Sensor Actuator Cable, 10m Length - Micro-Change Series - 1200060649

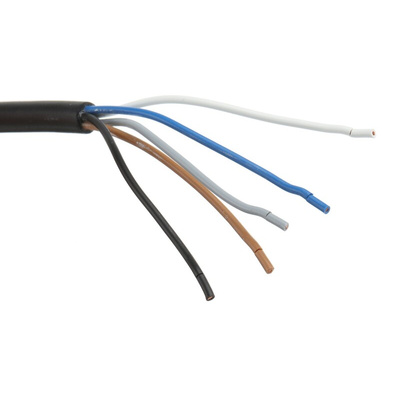

Use this Brad from Molex cable for quick and easy communication between your equipment and its sensors. It has an M12 connector on one end of its 10m length and it's unterminated with loose wires on the other. This gives you the freedom to either cut it to your desired length and extend an existing connection line or terminate it with an adapter of your choice. Polyurethane (PUR) connector housing provides effective insulation, protecting you from electrical hazards. You'll find this sensor actuator cable commonly used in manufacturing plants.

• Wide operating temperature range of -20°C to +80°C for use in demanding environments
• Compact cable diameter of 5.7mm for neat installation
• Threaded coupling style is quick and easy, eliminating the need for complex tooling
• Light weight of 510g so it's easy to handle

Applications

• Marine industries
• Gas plants
• Process control and automation

Can this cable's connector cope with oxidation?

All metal parts of this cable's connector are plated with protective materials. The gold plating on its mating parts and nickel plating on its coupling nut provides effective protection from oxidation and resultant rust, extending the lifespan of the cable.

BRAD - M12

Micro-Change M12 5P female cordset,10m - Customer Drawing

Datasheet - 1200060649
