1200060664, Brad from Molex Right Angle Female 5 way M12 to Unterminated Sensor Actuator Cable, 10m, Кабельная сборка

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets

Brad® Micro-Change® single ended pigtail female cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® M12 single ended female cordsets are available with straight or right angle connector configurations with a variety of cable types.

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Cable Types:
80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C
80xxxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
80xxxxxH09xxxx: Black PUR jacket, 0.34mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
Configuration:
803000, 804000, 805000, 80800: Female Straight
803001, 804001, 805001, 808001: Female Right Angle

Brad from Molex Right-Angle Female M12 to Free End Sensor Actuator Cable, 10m Length - Micro-Change Series - 1200060664

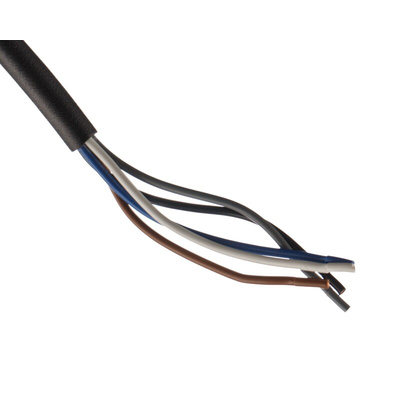

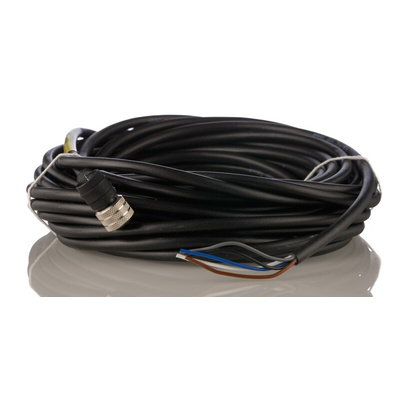

Use this Brad from Molex sensor actuator cable to link your detectors and transducers to control equipment in industrial automation settings. The unit has a durable and impact-resistant polyvinyl chloride (PVC) housing, making it practical for use in rough conditions. Its ample length of 10 metres provides you with the option of either cutting it to suit your system specification or using the entire span to link distant devices. This cable is single-ended, with a female M12 connector at one end and free wires at the other, so you can use it to extend an existing connection for flexibility.

• Inter-mateable with 3-pole and 4-pole cables for improved versatility
• Polyurethane (PUR) connector housing for insulation from electric shock
• IP67 (ingress protection) rating indicates ability to withstand dust and immersion in up to 1m of water

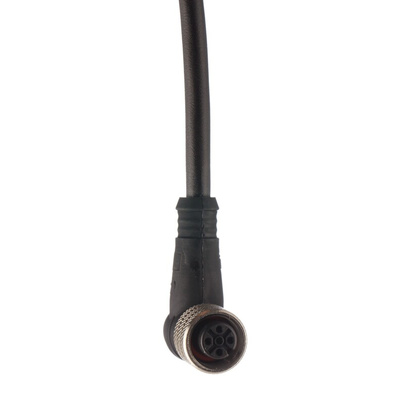

• Right-angle orientation for easy fitting in tight spots

Applications

• Aerospace industry
• Pharmaceutical manufacturing plants
• Food and beverage production faciities

What's the voltage rating of this cable?

This cable has a voltage rating of 250V for both AC and DC supplies, making it suitable for applications using high electric power transmission.

BRAD - M12

Micro-Change M12 5P female cordset,10m - Customer Drawing

Datasheet - 1200060664
