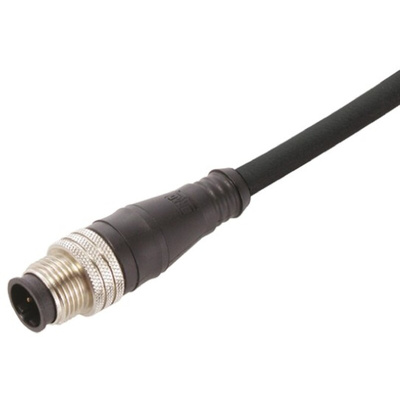

1200060682, Brad from Molex Straight Male 5 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Brad® Micro-Change® M12 A-Code Single Ended Male Cordsets

Brad® Micro-Change® single ended pigtail male cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® M12 single ended male cordsets are available with straight (803006, 804006, 805006, 808006) or right angle (803007, 804007) connector configurations with a variety of cable types.

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Cable Types:
80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP02xxxx: Black PUR/PVC jacket, 0.25mm² PVC conductors, 300V, 80°C
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C.

Brad from Molex Straight Male M12 to Free End Sensor Actuator Cable, 5m Length - Micro-Change Series - 1200060682

Establish secure links between your sensory devices and their control units with this hardwearing Brad from Molex cable assembly. It has copper alloy conductors that are highly conductive, giving you a steady and reliable connection. A polyvinyl chloride (PVC) jacket provides strong resistance against impact and abrasion, making the cable suitable for use in harsh environments. Thanks to a free, unterminated end with a 5-pole configuration, you can add a suitable connector for your system. For improved flexibility, this 5-pole setup is inter-matable with 3-pole and 4-pole designs.

• Nickel-plated brass coupling nuts for a secure, vibration-proof connection
• IP67 (ingress protection) rating indicates immunity to dust and immersion in up to 1m of water
• Slim cable diameter of 5.7mm for use in setups with limited space
• Wide operating temperature range of -20°C to +80°C for use in both extreme environments

• Water treatment plants
• Food and beverage production facilities
• Automotive industries

What's the current rating of this cable?

This cable has a low current rating of 4A, which makes it an energy-efficient solution.

BRAD - M12

Micro-Change M12 5 pole male cordset, 5m - Customer Drawing

Datasheet - 1200060682
