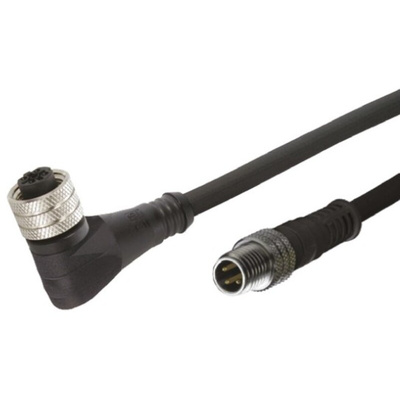

1200060056, Brad, Micro-Change Series, Right Angle M12 to Straight M12 Cable assembly, 4 Core 1m Cable, Кабельная сборка

Brad® Micro-Change® M12 A-Code Double Ended Cordsets

Brad® Micro-Change® double ended cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® double ended cordsets are available with female straight-to-male straight (884030) or female right angle-to-male straight (884031) connector configurations and a variety of cable types

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Configuration:
88xx30xxxxxxx: female straight to male straight
88xx31xxxxxxx: female right angle to male straight
Cable Type:
88xxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C.

BRAD - M12

Cordset M12(f) 90deg to M12(m) 1m - Customer Drawing
