1201190007, Brad from Molex Ultra-Lock Series Sensor Box, 5m cable, Кабельная сборка

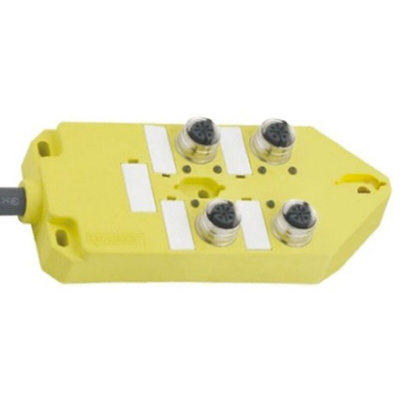

Brad® Ultra-Lock® M12 Distribution Box with Dual Wired Ports and PUR HR Cable

Brad® Ultra-Lock® M12 distribution boxes with dual I/O M12 5 pole female ports and black PUR home run cables. These Brad® Ultra-Lock® M12 junction boxes are for use with PNP sensors and accept Ultra-Lock and threaded M12 cordsets.

Fully potted, factory assembled design for ease of installation
Power and sensor trigger LED indication
PUR home run cable avoids need for additional installation components
Two input/output per port
IP67, NEMA 6 rated

Note

Cable Conductors:
4 port distribution boxes: 8 ´ 0.34mm² + 3 ´ 0.75 mm²
8 port distribution boxes: 16 ´ 0.34mm² + 3 ´ 0.75 mm²

BRAD - M12

Ultra-Lock M12 4 port junction box,5m - Customer Drawing
