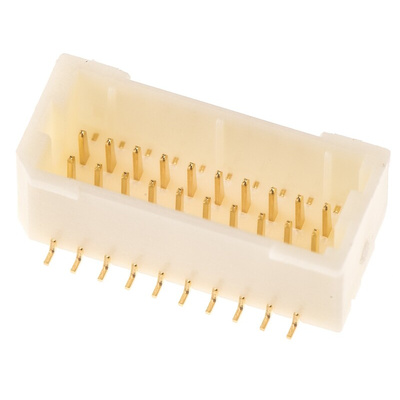

BM20B-SRDS-G-TF(LF)(SN), JST SHD Series Straight Surface Mount PCB Header, 20 Contact(s), 1.0mm Pitch, Shrouded

1.0mm Wire to Board SHD Series Top and Side Entry Headers

A range of ultra-compact, double-row shrouded PCB headers from JST, available in top and side entry styles. These 4.0mm pitch SMT mounting headers are designed to be compatible with vacuum pick-and-place equipment. The SHD series of connectors feature ribs and grooves on the headers and receptacles to prevent incorrect insertion and distortion during mating and un-mating.

• Voltage rating: 50V ac/dc
• Current rating: 1A
• Initial contact resistance: 20mΩ max
• UL Recognized E60389
• CSA Certified LR20812
• RoHS Compliant

Note

For 1.0mm SHD Series Housings see stock number 752-1686 typical.
