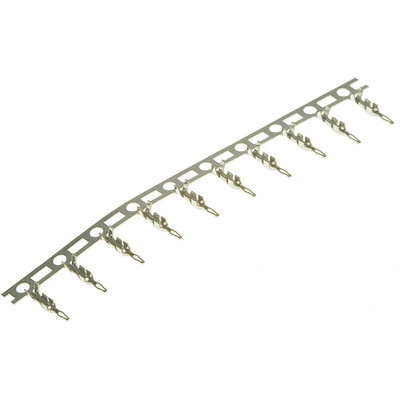

SAN-002T-0.8K, JST SAN Series Male Crimp Terminal, 30AWG Min, 24AWG Max, Контакты

2.0mm Board-In SAN Connector Contacts

The solder tails of these 2.0 mm pitch Board-In SAN connector contacts are designed to give easy insertion and secure locking into the PCB. These Board-In 2.0 mm pitch SAN contacts are Type B where the solder tail is joined at the tip to prevent breaking and for easy of handling. The Type B contact for these 2.0 mm pitch SAN Board-In connectors are for use with 1.6 mm thick PCBs and have a 0.9 to 1.3 mm cable insulation outside diameter capacity..

Note

For 2.0 mm SAN Board-In Connector Housings see stock number 752-1854 typical.
For SAN Crimp Hand Tool see stock number 752-2276 typical.

2.0mm Board-In - JST SAN Connector

These JST Wire to Board Crimp style 2.0 mm pitch SAN Connectors are a Board-In type. The 2.0 mm pitch SAN Connectors provide high-density mounting in an efficient and economical manner.

Datasheet
