RS PRO Brushed Geared DC Motor, 0.46 W, 6 V dc, 202 g.cm, 145 rpm, 3mm Shaft Diameter, Двигатель

12mm Subminature DC Motors - 951D Series

Designed for use within industrial applications where robust construction is key

Premium materials boasting high quality construction for use within heavy duty environments
12mm subminature spur geared motors
Bronze output bearings
Operating temperature: -10°C → +60°C

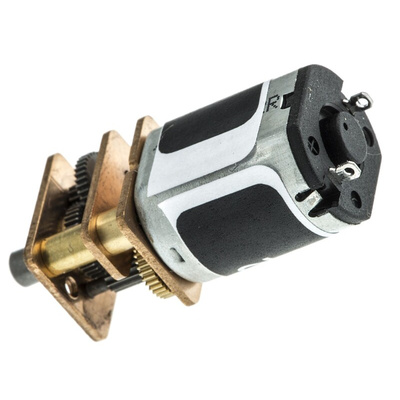

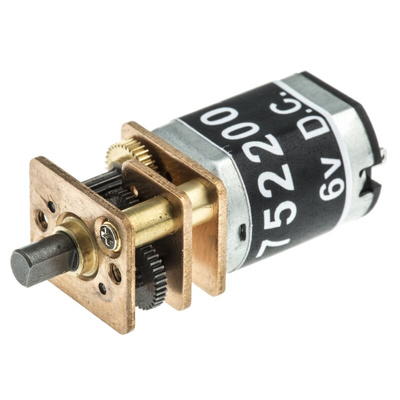

RS Pro 12mm 6 V dc Subminature DC Motors - 951D Series

From RS Pro, this DC geared motor is ideal for low speed applications that require high starting torque. The brushed motor ensures a low cost and simplified design, while offering versatility and reliability.

A robust unit, this DC motor has a spur gearbox with bronze output bearings that facilitate high torque transfer from the motor through the gearbox.

The gear motor is subminiature 12 mm construction, and is designed for most low voltage applications, providing a 145 rpm no-load speed.

Features and Benefits

• 6 V dc Supply Voltage
• Subminiature- ideal for space saving applications
• Bronze output bearings
• Spur gear head

Applications

DC geared motors are highly versatile, and are used in many appliances and technologies. Whether you're a hobbyist or industrial manufacturer, DC electric motors can be used to provide any number of practical solutions, and are often used in;

• Water pumps
• Camera Systems
• Adjusting devices
• Robotics
• Fans

What's the Difference Between Brushed and Brushless DC Motors?

Electric motors that use a brush to deliver current to the motor windings have a simpler construction than their brushless equivalents, and are therefore usually lower in cost. They are also able to be wired directly to a DC power source, and have no need for an encoder or drive, which results in more simplified wiring options.

Unfortunately, wear and tear on the brush element means a shorter service life and less efficiency. They are also typically noisier than brushless DC motors.

Why RS Pro?

RS Pro strives to provide you with the choice and reliability you need in your component purchasing. From designing prototypes to finding reliable maintenance solutions, RS Pro can furnish you with the parts you need, when you need them.

Providing high-quality hardware tested by our in-house experts, RS Pro offers you an assurance of quality at competitive prices.

At every stage of the design and manufacturing process, RS Pro is there to support you.

RS PRO Datasheet
