RS PRO Brushed DC Motor, 0.46 W, 6 V DC, 527 gcm, 60 rpm, 3 mm Shaft Diameter

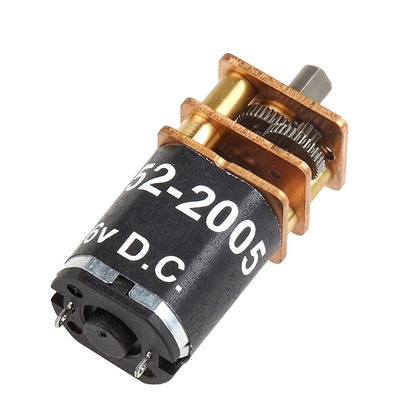

Choose this DC motor from RS PRO to efficiently convert electrical energy to mechanical energy in industrial position control applications. It comes pre-fitted with miniature spur gears, so it can handle high torques and low speeds, which is good for controlling heavy loads precisely.
The motor uses quality bronze materials to ensure high strength and superior resistance to corrosion. This makes it suitable for demanding environments, such as manufacturing plants. A wide operating temperature range of -10°C to +60°C, means it's useful to control devices that are exposed to high heat, such as coffee machines or outdoor electronics.
Spur gear motors like these are highly compact, so they're well-suited for modular systems and industrial robotics operations. Since it uses a brushed motor, it can be fitted directly into the machine without the need for a digital controller. This unit undergoes rigorous testing to ensure quality and reliability.

Features and Benefits

• Metal core construction
• Current rating of 170 mA
• Brushed DC motor
• Length of 24.25 mm
• Width of 12 mm
• Maximum output torque of 527 g/cm (grams per centimetre)
• Output speed of 60 rpm (revolutions per minute)
• Power rating of 0.46 W
• Shaft diameter of 3 mm
• Supply voltage of 6 V DC
• Weight of 10 g
