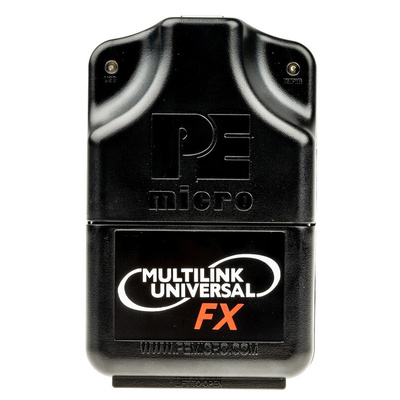

U-MULTILINK-FX, NXP Universal Multilink FX, Development Kit

NXP Flash Programmer

The NXP flash programmer FX is a high-speed, all-in-one development interface which allows a PC access to the Background Debug Mode (BDM) or JTAG interface on Freescale Kinetis, Qorivva 55xx/56xx, ColdFire V1/+V1, ColdFire V2-4, HCS08, RS08, HC(S)12(X), DSC and HC16/683xx microcontrollers. It is an easy-to-use debug and programming interface, which allows the PC to communicate with a target processor through the USB port of the PC. The Multilink controls the microprocessor by accessing the debug port of the target. It can accommodate communications with a variety of Freescale MCUs by featuring multiple headers, which can be accessed by simply flipping open the plastic case. Ribbon cables for the supported MCUs are conveniently included. The Multilink’s exceptional speed and reliability make it ideal for development. It is natively supported by recent versions of CodeWarrior®, current P&E software applications and toolchains from IAR, Keil, Cosmic and Mentor Graphics. The support varies by architecture, so contact the vendor to determine compatibility.
Supplied with:
Ribbon connecting cables
Note:
NXP is a trademark of NXP B. V

Features and Benefits

Can provide power to target
Compact size
Draws power directly from the USB port, no external power needed
Fast, hassle-free USB 2.0 communication interface
High-speed communication up to 10X faster than Multilink Universal*
I/O line clamping
Multi-voltage support for targets ranging between 1.6 and 5.25V
Supports legacy Freescale devices

Applications

Development/Prototyping
Embedded systems
