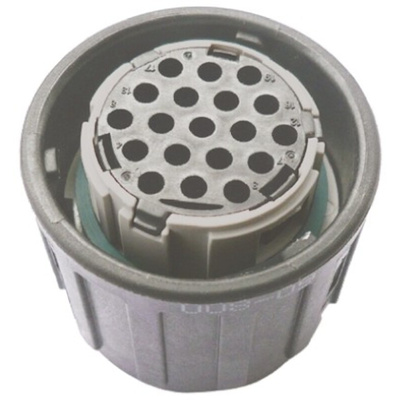

121583-0121, ITT Cannon, APD 19 Pole Din Plug, DIN 72585, 48 V dc IP67, IP69K, Male, Cable Mount, Разъем

ITT Cannon Connectors APD Series Plug Connectors 19 Way

ITT Cannon connectors APD series plug connectors 19 way are robust harsh environment connectors ideally suited for applications within the automotive industry such as wire to wire chassis connections, tractors, heavy vehicles and also suitable for industrial automation connector applications.

Operating voltage 48VDC
Contact resistance 5mΩ max
Voltage proof 1000 VAC (60 secs)
Insulation resistance 10MΩ min

Note

For socket contacts: 752-5742 , 752-5745 , for seals: 752-5767, 752-5761 , 752-5764 , For blind seal see: 752-5770 , for hand crimp tool: 752-5815 and for release tool: 752-5755

Standards

DIN EN 60529, ISO 15170-2 sec.6.2,6.3,6.4,6.6

ITT Cannon APD Series ISO 15170 Connectors

The ITT Cannon APD series of connectors are a versatile range of full plastic direct, in-line and bulkhead circular connectors, specifically designed for the transportation, off-road and special vehicle markets. These circular connectors have a strong resistance to engine transmission and brake fluids and the associated environments. The APD series is also an ideal connector for other applications including military or industrial that require harsh environment solutions while insisting on a product that is both small in size and lightweight.The APD series of connectors cover a wide range of 1 and 2-way power solutions up to 51-way interface connectors.

APD Series Full Catalogue

Heavy Vehicle and Off Road Product Guide

ITT Cannon APD Modular Interface
