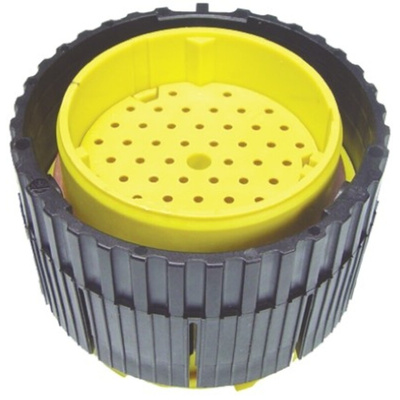

121583-0188, ITT Cannon, APD 51 Pole Din Plug, DIN 72585, 48 V dc IP67, IP69K, Male, Cable Mount, Разъем

ITT Cannon Connectors APD Series Plugs 51 Way

ITT Cannon connectors APD series plug connectors 51 way are a durable cost effective multi-pin connectors with signal contacts, suitable for wire to wire and wire to board connection applications. These APD series 51 way connectors are ideal for harsh environment usage, they are available in a variety of colours to aid visual mating and to prevent mismatching.

Operating voltage 48VDC
Contact resistance 5mΩ max.
Voltage proof 1000VaC (60 Secs)
Insulation resistance 10MΩ min.

Note

For pin contacts see: 752-5749, 752-5758 for Endbell see: 752-5806 and for hand crimp tool: 752-5815

Standards

DIN EN 60529, ISO 15170-2 sec.6.2,6.3,6.4,6.6

ITT Cannon APD Series ISO 15170 Connectors

The ITT Cannon APD series of connectors are a versatile range of full plastic direct, in-line and bulkhead circular connectors, specifically designed for the transportation, off-road and special vehicle markets. These circular connectors have a strong resistance to engine transmission and brake fluids and the associated environments. The APD series is also an ideal connector for other applications including military or industrial that require harsh environment solutions while insisting on a product that is both small in size and lightweight.The APD series of connectors cover a wide range of 1 and 2-way power solutions up to 51-way interface connectors.
