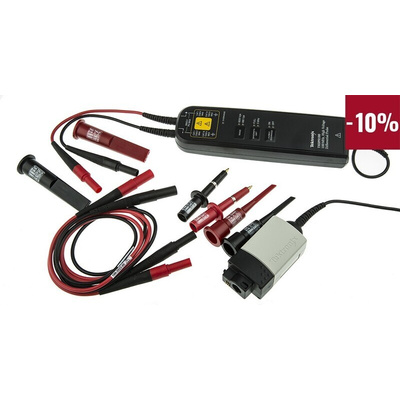

Tektronix THD Series THDP0100 Oscilloscope Probe, Differential, High Voltage Type, 100MHz, 1:100, 1:1000, BNC Connector, Щупы для осциллографа

Tektronix Oscilloscope Probes

The Tektronix differential high voltage oscilloscope has the largest differential dynamic range capability. It allows the user to safely measure up to ±6000V. The probe supports bandwidths up to 100MHz and slew rates up to 2500V/ns at 1/1000 gain. This probe is supplied with two sizes of hook tips and has an over-range visual and audible indicator that warns the user when they are exceeding the linear range of the probe.

Note:

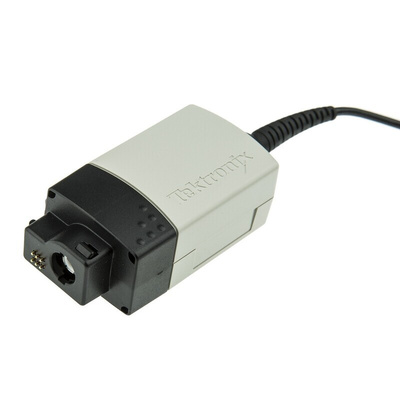

TMDP and THDP Series probes have the TekVPI® interface which enables smart communication between oscilloscope and probe - each TekVPI probe features controls and indicators located on the probe compensation box, designed to provide quick and easy access to the probe's most required set-up controls and operating status. P52xxA Series probes have the Tektronix TekProbe® interface which communicates scale information to the oscilloscope.

The THDP0100 can measure floating voltages up to 6000V safely. An over-range visual and audible indicator warns the user when the linear range of the probe is exceeded.

Features and Benefits

Bandwidth is DC to 200MHz
Attenuation ratio is 1:100 and 1:1000
Rise time is 3.5ns
Input impedance is 40Mohmll2.5pF
Maximum common mode voltage is ±6000KV
Maximum Input voltage is 2300V CAT I 1000V CAT III
Typical CMRR DC: >-80dB/100 kHz: >-60dB/3.2 MHz: >-30dB/100 MHz: >-26dB
Overrange Indicator
Safety Certified
Switchable attenuation
Switchable bandwidth limit
Cable length 1.5 m

Applications

High voltage differential probes are used for measuring voltage differences between two test points where neither test point is at ground. They can be found in:

Floating measurements
Switching power supply design
Motor drive design
Electronic ballast design
CRT display design
Power converter design and service
Power device evaluation
BNC interface (P5200A probes)
TekVPI interface (TMDP and THDP Series probes)
TekProbe interface

Certifications

CE certified
ISO certified
CAT I 2300 V
CAT III 1000 V

Supplied with
type":"Supplied with",

2 probe tips
2 large hook clips
2 small hook clips
2 probe heads

Datasheet
