Tektronix THD Series THDP0200 Oscilloscope Probe, Differential, High Voltage Type, 200MHz, 1:50, 1:500, BNC Connector, Щупы для осциллографа

Tektronix Differential Oscilloscope Probes

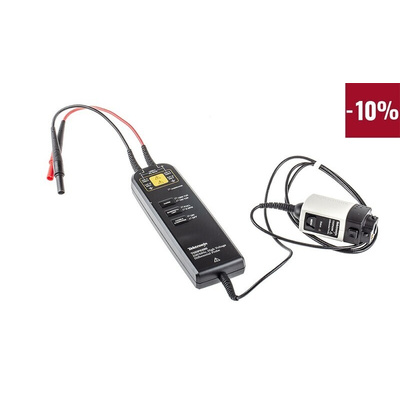

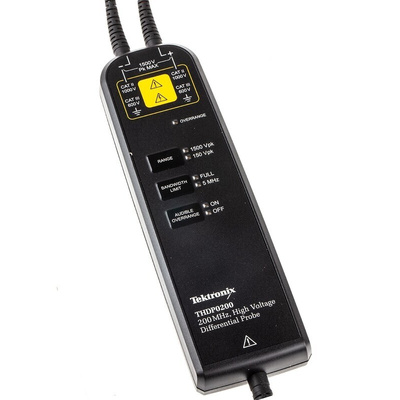

The Tektronix THDP0200 is an active differential oscilloscope probe capable of safely measuring differential voltages up to ±1500V. This probe is effective in making measurements in IGBT circuits such as motor drives and power converters. It supports bandwidths up to 200MHz and slew rates up to 275V/ns at 1/250 gain.
A broad portfolio of high-voltage probing solutions that enable users to safely and accurately make floating measurements.

Note:

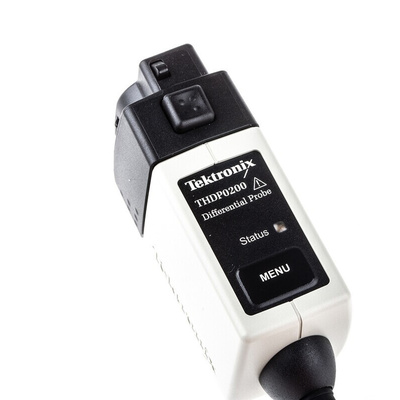

TMDP and THDP Series probes have the TekVPI® interface which enables smart communication between oscilloscope and probe - each TekVPI probe features controls and indicators located on the probe compensation box, designed to provide quick and easy access to the probe's most commonly required set-up controls and operating status. P52xxA Series probes have the Tektronix TekProbe® interface which communicates scale information to the oscilloscope

Features and Benefits

Bandwidth is DC to 200MHz
Attenuation ratio is 1:100 and 1:1000
Rise time is 3.5ps
Input impedance is 10Mohmll2pF
Maximum common mode voltage is ±1.5KV
Maximum Input voltage is 1000V CAT II 600V CAT III
Wide compensation range (7pF-30pF)
CMRR (typical) is DC: > -80dB 100kHz: > -60dB 3.2MHz: > -30dB 100MHz: > -26dB
Overrange Indicator
Safety Certified
Switchable attenuation
Switchable bandwidth limit
Interface type TekVPI

Applications

High voltage differential probes are used for measuring voltage differences between two test points where neither test point is at ground. They can be found in:

Floating measurements
Switching power supply design
Motor drive design
Electronic ballast design
CRT display design
Power converter design and service
Power device evaluation
BNC interface (P5200A probes)
TekVPI interface (TMDP and THDP Series probes)
TekProbe interface

Certifications

CAT II 1000 V
CAT III 600 V
