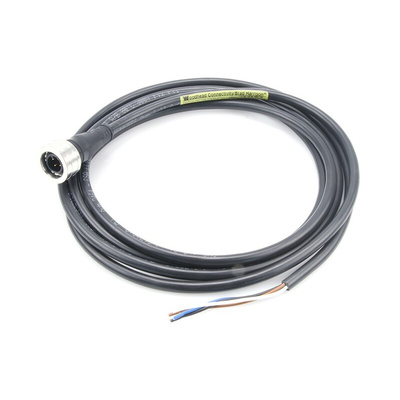

1200790263, Brad from Molex Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Brad® Ultra-Lock® M12 Single Ended Male Cordsets

Brad® Ultra-Lock® M12 single ended male pigtail cordsets with push-to-lock PUR connectors and gold plated copper alloy contacts. These Brad® Ultra-Lock® M12 single ended male cordsets are available with straight (W04006, W08006) or right angle (W04007) connections with a choice of cable types and cable jackets.

Push-to-Lock mechanism for reliable connection
Positive locking for performance in high vibration environment
Sealing design enabling wash-down and use in temporary submersion applications
3,4 and 5 pole versions are intermatable
IP67, NEMA 6 rated

Note

Cable Types:
W0xxxxP03xxxx: Black PUR/PVC cable jacket, 0.34mm² PVC conductors, 300V, 80°C
W0xxxxE03xxxx: Yellow PVC jacket 0.34mm² PVC conductors, 300V, 80C, UL AWM 2464
W0xxxxH08xxxx: Black PUR jacket, 0.25mm², PVC conductors, 300V, 80°C, Low Smoke/Zero Halogen (LS0H), UL AWM 2119
W0xxxxP45xxxx: Black PUR jacket, shielded

Standards

CSA File No: LR6837 (3,4 and 5 pole versions)

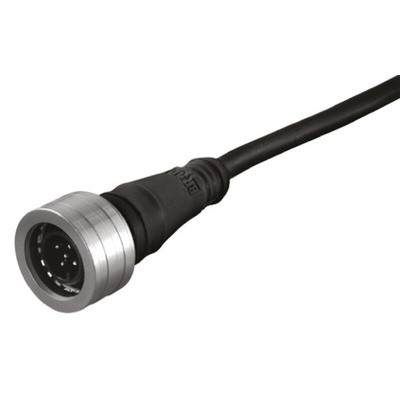

Brad from Molex Straight Male M12 to Free End Sensor Actuator Cable, 2m Length - Ultra-Lock Series - 1200790263

Connect your sensors and actuators to control equipment in harsh environments with this Brad from Molex cable. With an IP69K (ingress protection) rating, it's resistant to dust and high-pressure water jets at high temperatures. This makes it robust enough for use in extreme industrial conditions. A push-to-lock straight male connector on one end of the cable makes for a secure connection protected against tampering and vibrations. On the other end, there's a 4-core loose wire arrangement that's conveniently compatible with 3-core and 5-core cables.

• Wide operating temperature range of -30°C to +80°C for use in challenging conditions
• Light weight of 99g for easy handling
• Polyvinyl chloride (PVC) cable jacket resists impact and abrasion
• Cable length of 2m for easy access
• Current rating of 4A for energy efficiency and low heat dissipation

Applications

• Industrial boilers
• High-pressure and low-pressure compressors
• Marine industries

What's the purpose of the O-ring in this cable connector?

For enhanced performance, the O-ring in this cable connector provides additional protection from dust, water, oil and other contaminants.
