1200795044, Brad from Molex Right Angle Female 5 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Brad® Ultra-Lock® M12 Single Ended Female Cordsets

Brad® Ultra-Lock® M12 single ended female pigtail cordsets with push-to-lock PUR connectors and gold plated copper alloy contacts. These Brad® Ultra-Lock® M12 single ended female cordsets are available with a choice of cable types and cable jackets.

Push-to-Lock mechanism for reliable connection
Positive locking for performance in high vibration environment
Sealing design enabling wash-down and use in temporary submersion applications
3,4 and 5 pole versions are intermatable
IP67, NEMA 6 rated

Note

Cable types:
W0xxxxP03xxxx: Black PUR/PVC cable jacket, 0.34mm² PVC conductors, 300V, 80°C
W0xxxxE03xxxx: Black PVC cable jacket, 0.34mm² PVC conductors, 300V, 80°C
W0xxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors, 300V, 80°C, low smoke/zero halogen (LSOH), UL AWM 21198
W0xxxxP45xxxx: Black PUR jacket, shielded

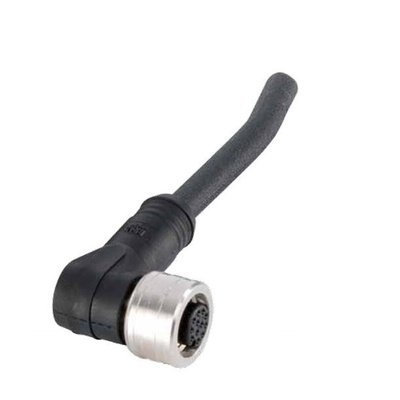

Stock number 752-7397 has a 90° connector body.

Standards

CSA File No: LR6837 (3,4 and 5 pole versions)

BRAD - M12

Ultra-LockM12 5 pole Female 90 deg Cordset 5m Customer Drawing
