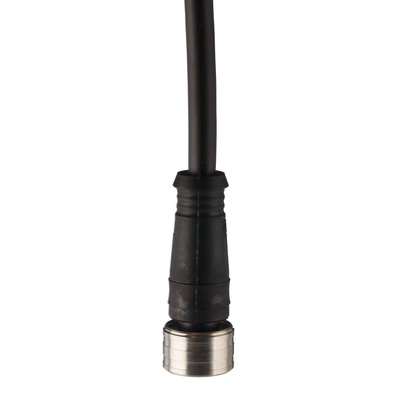

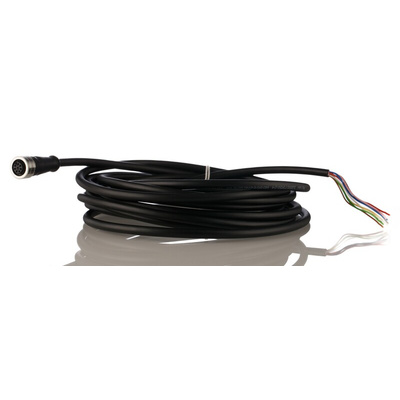

1200795024, Brad from Molex Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Brad® Ultra-Lock® M12 Single Ended Female Cordsets

Brad® Ultra-Lock® M12 single ended female pigtail cordsets with push-to-lock PUR connectors and gold plated copper alloy contacts. These Brad® Ultra-Lock® M12 single ended female cordsets are available with a choice of cable types and cable jackets.

Push-to-Lock mechanism for reliable connection
Positive locking for performance in high vibration environment
Sealing design enabling wash-down and use in temporary submersion applications
3,4 and 5 pole versions are intermatable
IP67, NEMA 6 rated

Note

Cable types:
W0xxxxP03xxxx: Black PUR/PVC cable jacket, 0.34mm² PVC conductors, 300V, 80°C
W0xxxxE03xxxx: Black PVC cable jacket, 0.34mm² PVC conductors, 300V, 80°C
W0xxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors, 300V, 80°C, low smoke/zero halogen (LSOH), UL AWM 21198
W0xxxxP45xxxx: Black PUR jacket, shielded

Stock number 752-7397 has a 90° connector body.

Standards

CSA File No: LR6837 (3,4 and 5 pole versions)

Brad from Molex Straight Female M12 to Free End Sensor Actuator Cable, 5m Length, 8 Cores - Ultra-Lock Series - 1200795024

Connect sensors and actuators to your industrial equipment with this Brad from Molex cable. The unit has an M12 adapter on one end and is unterminated at the other, letting you either choose a connector to suit your setup or extend an existing connection. Thanks to the cable's eight contacts, so you can transmit different signals at the same time. These contacts are made of highly conductive copper material, ensuring a reliable connection. You'll find cables like this one used in heavy-duty manufacturing.

• PU (polyurethane) cable jacket for resistance to impact and abrasion
• IP67 (ingress protection) rating to withstand dust and immersion in 1m of water for up to 30 seconds
• Cable length of 5m for use in larger-scale setups
• Wide operating temperature range of -20°C to +85°C, so suitable for demanding conditions

Applications

• Robotics and automation
• Automotive industry

Can I use this cable with vibrating systems?

A brass and nickel coupling nut on the M12 adapter prevents the cable from disconnecting accidentally and makes it a secure choice for use with vibrating equipment.

BRAD - M12

Ultra-Lock M12 8 pole female Cordset Drawing
