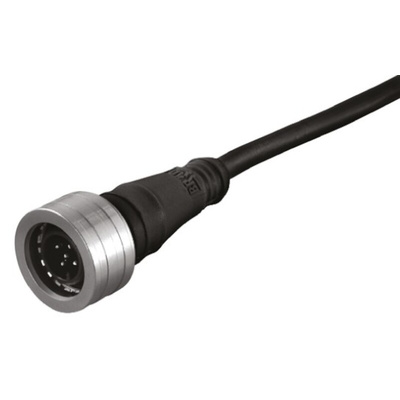

1200795027, Brad from Molex Straight Male 8 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Brad® Ultra-Lock® M12 Single Ended Male Cordsets

Brad® Ultra-Lock® M12 single ended male pigtail cordsets with push-to-lock PUR connectors and gold plated copper alloy contacts. These Brad® Ultra-Lock® M12 single ended male cordsets are available with straight (W04006, W08006) or right angle (W04007) connections with a choice of cable types and cable jackets.

Push-to-Lock mechanism for reliable connection
Positive locking for performance in high vibration environment
Sealing design enabling wash-down and use in temporary submersion applications
3,4 and 5 pole versions are intermatable
IP67, NEMA 6 rated

Note

Cable Types:
W0xxxxP03xxxx: Black PUR/PVC cable jacket, 0.34mm² PVC conductors, 300V, 80°C
W0xxxxE03xxxx: Yellow PVC jacket 0.34mm² PVC conductors, 300V, 80C, UL AWM 2464
W0xxxxH08xxxx: Black PUR jacket, 0.25mm², PVC conductors, 300V, 80°C, Low Smoke/Zero Halogen (LS0H), UL AWM 2119
W0xxxxP45xxxx: Black PUR jacket, shielded

Standards

CSA File No: LR6837 (3,4 and 5 pole versions)

BRAD - M12

Ultra-Lock M12 8 pole male Cordset Drawing
