1200845154, Brad from Molex Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 300mm, Кабельная сборка

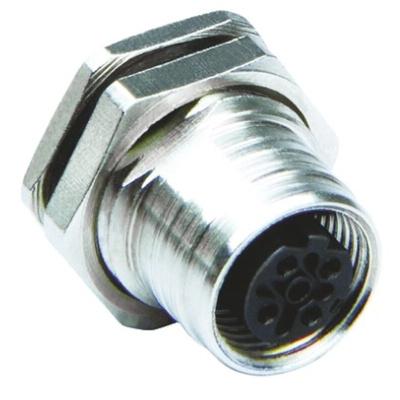

Brad® Ultra-Lock® M12 Female Panel Mount Receptacles

Brad® Ultra-Lock® female panel mount receptacles with Ultra-Lock feature and M12 single keyways (A-coding). These Brad® Ultra-Lock® female panel mount receptacles have a nickel plated brass shell, gold plated copper alloy contacts, UL1061 PVC leads and will mate with standard threaded M12 and Ultra-Lock cordsets.

IEC compliant panel mounting receptacles
Ultra-Lock feature
Fully potted for IP67 protection in harsh environments
NEMA 6 rated
UL1061 300V, 80°C PVC leads

Note

Configuration:
WRxJ20xxxxxxxx: PG9, front panel mounting
WRxJ40xxxxxxxx: PG9, back panel mounting
WRxU20xxxxxxxx: M16 x 1.5 front panel mounting
WRxU40xxxx: M16 x 1.5 back panel mounting with PCB pins

Standards

cCSAus Certified LR6837 (4-5 pole version)

Brad from Molex Straight Female M12 to Free End Sensor Actuator Cable, 300mm Length - Ultra-Lock Series - 1200845154

Use this Brad from Molex cable to establish secure connections in industrial settings. On one end, it has a female M12 connector that's made of nickel-plated brass for durability and corrosion resistance. On the other end, it's unterminated with loose wires to give you the freedom of either extending an existing connection or terminating with an adapter of your choice. The cable is jacketed in polyvinyl chloride (PVC) material to provide resistance against the impact and abrasion you'd expect in harsh industrial environments.

• Wide operating temperature of -25°C to +90°C for safe industrial use
• Push-to-lock feature for a secure connection that handles vibration and can't be tampered with
• Light weight of 20.1g for easy handling
• Threaded coupling design doesn't need any complex tooling

Applications

• Industrial boilers
• Water and sewage treatment plants
• Chemical processing facilities

What does an IP69K rating mean?

This cable has an IP69K (ingress protection) rating that indicates protection against dust, as well as high-pressure and high-temperature water. Components with this rating perform reliably in extreme conditions.

BRAD - M12

Ultra-Lock M12 4P female receptacle, PG9, front panel mounting - Customer Drawing

Datasheet - 1200845154
