1200845108, Brad from Molex Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 300mm, Кабельная сборка

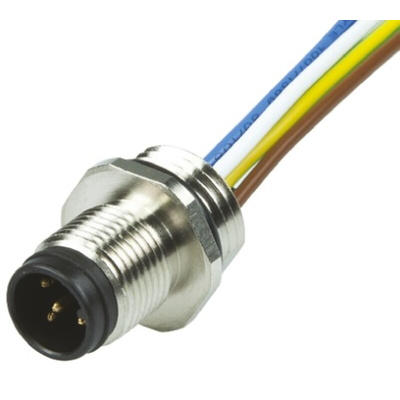

Brad® Ultra-Lock® M12 Male Panel Mount Receptacles

Brad® Ultra-Lock® male panel mount receptacles with M12 single keyway (A-coding), a nickel plated brass shell and gold plated copper alloy contacts. These panel mount receptacles are available in a variety of configurations and will mate with standard threaded M12 and Ultra-Lock cordsets

IEC compliant panel mounting receptacle
Ultra-Lock feature
Fully potted for IP67 protection in harsh environments
NEMA 6 rated
UL1061 300V, 80°C PVC leads

Note

Configuration:
WRxJ26xxxxxx: PG9, front panel mounting
WRxJ46xxxxxx: PG9, back panel mounting
WRxU26xxxxxxx: M16x1.5 front panel mounting
WRxU46xxxx: M16x1.5 back panel mounting with PCB pins

Standards

cCSAus Certified LR6837 (4-5 pole version)

Brad from Molex Straight Male M12 to Free End Sensor Actuator Cable, 300mm Length - Ultra-Lock Series - 1200845108

Choose this Brad from Molex weatherproof sensor cable to establish secure connections in your industrial automation systems. On one end, it features a straight male M12 connector made from nickel-plated brass that resists corrosion and delivers a long service life. The connector has an external thread to make it easy to screw onto a female connection port. On the other end of the cable, there are loose wires you can use to extend an existing line. This makes it practical for use when the sensor and control unit are far from each other.

• Light weight of 21.7g, so it's easy to handle
• Broad operating temperature range of -25°C to +90°C for use in both extreme hot and cold environments
• IP69K (ingress protection) rating means it can withstand dust and high-temperature, high-pressure water
• Maximum voltage rating of 60V for use in low-voltage applications

Applications

• Chemical processing plants
• Oil rigs
• Marine industries

How do I establish a secure connection with this cable connector?

The adapter on this cable has a push-to-lock feature that ensures a secure grip on the connection port of your sensor control unit.

BRAD - M12

Ultra-Lock M12 4P male receptacle, M16 front panel mount - Customer Drawing

Datasheet - 1200845108
