1200845107, Brad from Molex Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 300mm, Кабельная сборка

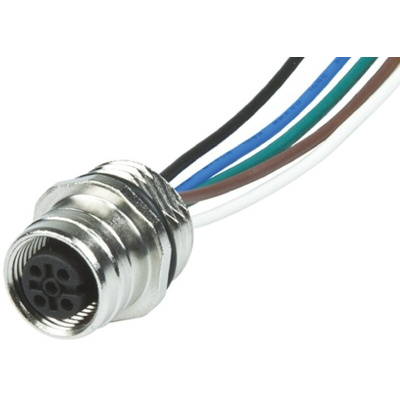

Brad® Ultra-Lock® M12 Female Panel Mount Receptacles

Brad® Ultra-Lock® female panel mount receptacles with Ultra-Lock feature and M12 single keyways (A-coding). These Brad® Ultra-Lock® female panel mount receptacles have a nickel plated brass shell, gold plated copper alloy contacts, UL1061 PVC leads and will mate with standard threaded M12 and Ultra-Lock cordsets.

IEC compliant panel mounting receptacles
Ultra-Lock feature
Fully potted for IP67 protection in harsh environments
NEMA 6 rated
UL1061 300V, 80°C PVC leads

Note

Configuration:
WRxJ20xxxxxxxx: PG9, front panel mounting
WRxJ40xxxxxxxx: PG9, back panel mounting
WRxU20xxxxxxxx: M16 x 1.5 front panel mounting
WRxU40xxxx: M16 x 1.5 back panel mounting with PCB pins

Standards

cCSAus Certified LR6837 (4-5 pole version)

Brad from Molex Sensor Actuator Cable, 4A Current Rating per Contact, Unshielded - 120025 Series - 1200845107

Need to bridge the gap between a sensor and your PLC? Join A with B using this 4-core Brad from Molex sensor actuator cable. Its standard M12 end pops onto a sensing device to speed up installation. Thanks to the locking O-ring, that connection won't come undone even in vibrating conditions. Once connected, gold-plated copper alloy contacts will zip signals along in a snap to suit use in automated networks.

Features & Benefits

• PVC jackets dampen EMI to boost signal reliability
• 22AWG wire takes up minimal space to slot into dense arrangements
• Performs hiccup-free in temperatures ranging from -25°C to +85°C

Applications

• Food and beverage production
• Manufacturing industry
• Assembly lines

What environments can this cable handle?

This product carries an IP69K rating, meaning it's fully protected against dust, moisture and even submersion under water. That means you can trust it in extreme indoor and outdoor environments.

BRAD - M12

Ultra-Lock M12 4P female receptacle, M16, front panel mounting - Customer Drawing

Datasheet - 1200845107
