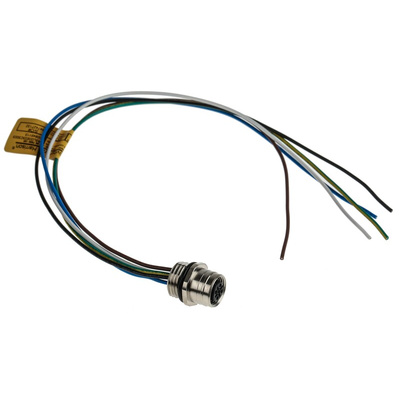

1200845113, Brad from Molex Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 300mm, Кабельная сборка

Brad® Ultra-Lock® M12 Female Panel Mount Receptacles

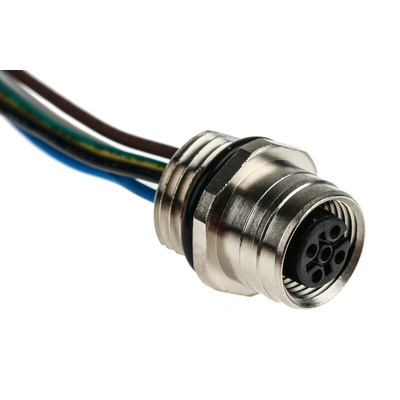

Brad® Ultra-Lock® female panel mount receptacles with Ultra-Lock feature and M12 single keyways (A-coding). These Brad® Ultra-Lock® female panel mount receptacles have a nickel plated brass shell, gold plated copper alloy contacts, UL1061 PVC leads and will mate with standard threaded M12 and Ultra-Lock cordsets.

IEC compliant panel mounting receptacles
Ultra-Lock feature
Fully potted for IP67 protection in harsh environments
NEMA 6 rated
UL1061 300V, 80°C PVC leads

Note

Configuration:
WRxJ20xxxxxxxx: PG9, front panel mounting
WRxJ40xxxxxxxx: PG9, back panel mounting
WRxU20xxxxxxxx: M16 x 1.5 front panel mounting
WRxU40xxxx: M16 x 1.5 back panel mounting with PCB pins

Standards

cCSAus Certified LR6837 (4-5 pole version)

Brad from Molex Straight Female M12 to Free End Sensor Actuator Cable, 300mm Length - Ultra-Lock Series - 1200845113

For quick and efficient data transfer between your sensors and control equipment, choose this Brad from Molex cable. The receptacle has a nickel-plated brass connector that's durable and corrosion-resistant, so you can rely on it for extended service. The other end is unterminated, leaving five-core loose wires you can use to extend an existing connection. For additional flexibility, you can conveniently link this 5-core cable with 3-core and 4-core equivalents. With a current rating of 4A, this unit is energy efficient and will dissipate minimal heat, making it suitable for use in volatile settings.

• Broad operating temperature range of -25°C to +90°C for use in demanding conditions
• IP69K (ingress protection) rating to withstand dust and high-pressure water jets
• Light weight of 23.2g for minimal system strain
• Push-to-lock feature for a secure, tamper-proof and vibration-resistant connection

Applications

• High-pressure and low-pressure compressors
• Sewage treatment plants
• Gas plants

How do I mount this cable?

This cable is designed for direct mounting onto your equipment's panel, making it straightforward to install.

BRAD - M12

Ultra-Lock M12 5P female receptacle, M16, front panel mounting - Customer Drawing

Datasheet - 1200845113
