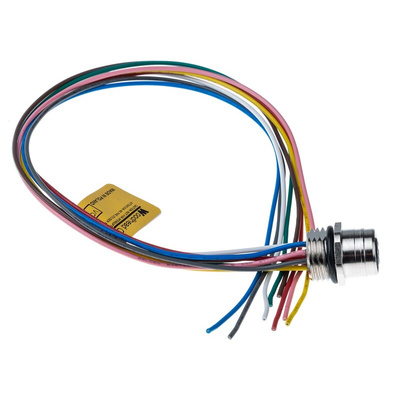

1200845095, Brad from Molex Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 300mm, Кабельная сборка

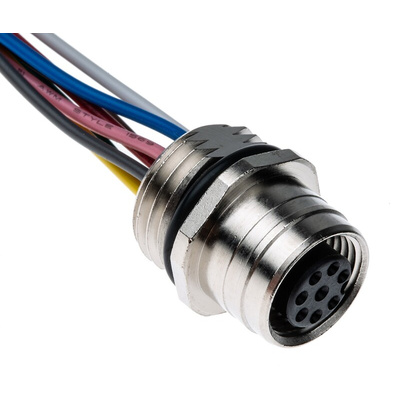

Brad® Ultra-Lock® M12 Female Panel Mount Receptacles

Brad® Ultra-Lock® female panel mount receptacles with Ultra-Lock feature and M12 single keyways (A-coding). These Brad® Ultra-Lock® female panel mount receptacles have a nickel plated brass shell, gold plated copper alloy contacts, UL1061 PVC leads and will mate with standard threaded M12 and Ultra-Lock cordsets.

IEC compliant panel mounting receptacles
Ultra-Lock feature
Fully potted for IP67 protection in harsh environments
NEMA 6 rated
UL1061 300V, 80°C PVC leads

Note

Configuration:
WRxJ20xxxxxxxx: PG9, front panel mounting
WRxJ40xxxxxxxx: PG9, back panel mounting
WRxU20xxxxxxxx: M16 x 1.5 front panel mounting
WRxU40xxxx: M16 x 1.5 back panel mounting with PCB pins

Standards

cCSAus Certified LR6837 (4-5 pole version)

Brad From Molex Sensor Actuator Cable, Nickel-Plated Brass Connector, 2A Current Rating - Ultra-Lock Series - 1200845095

To keep your industrial devices on speaking terms, use this Brad from Molex sensor actuator cable. Its M12 connector features push-to-lock technology for a simple yet secure link that's ideal for hooking up control devices. A reliable compression seal reduces the chance of signal loss, which helps to increase your uptime. Positive locking keeps the connector in place, even when you use it with moving machinery.

Features & Benefits

• Hardwearing PVC jacket for longevity in harsh settings
• Light weight of 23.457g puts minimal strain on your panel
• Straight connector body orientation makes it simple to install

Applications

• Industrial automation
• Packaging facilities
• Food and beverage industries
• Chemicals processing

Is this cable terminated on both ends?

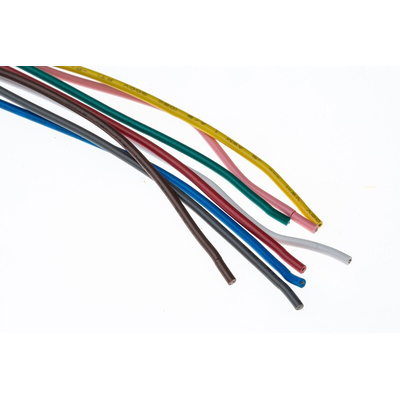

No, one end of the assembly is unterminated, so you can choose the connector that best suits your equipment.

BRAD - M12

Ultra Lock M12 Receptacle female 8pole M16 front panel mount, 0.3m - Customer Drawing

Line Drawing - 1200845095
