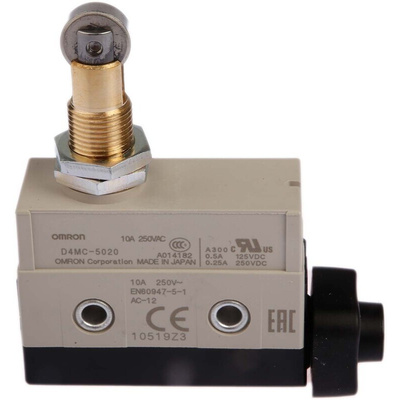

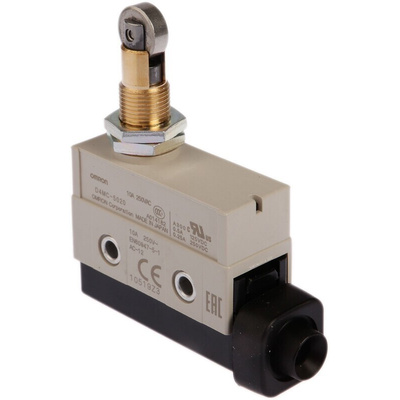

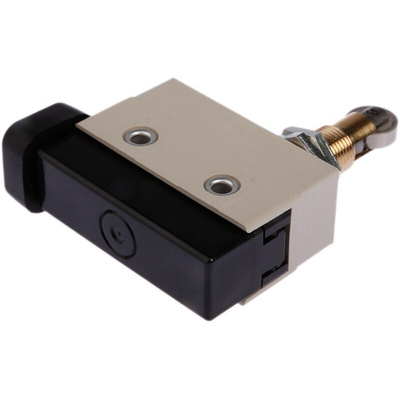

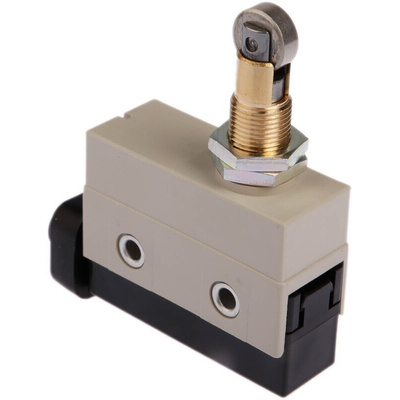

D4MC-5020, Omron D4MC Series Roller Plunger Limit Switch, NO/NC, IP67, SPDT, 480V ac Max, ac 3 A, dc 250mA Max

D4MC Enclosed Switch

High Utility Enclosed Switch

Enclosed Switches with Built-in Basic switches for high repeatability and durability of 10 Million operations minimum
Panel mount versions have the same operating position as Z Basic Switch
Suitable for applications demanding higher mechanical strength, dustproof and drip-proof properties than those on basic switches

Standards

UL, CSA, and CCC

OMRON Limit Switch, 5.88N Operating Force, Side Mounting - D4MC Series - D4MC-5020

Need a safe way to tell your industrial equipment when to stop and when to go? Choose this limit switch from OMRON. It has a panel-mounted roller plunger actuator that's triggered in response to the presence of a moving part or object. This keeps your kit running smoothly and keeps workers safe. An operating force of 5.88N and release force of 0.98N mean the unit is sensitive to light touches and delivers a quick response. This makes it suitable for use in critical features like guard doors. Its 10A rating makes it the right choice for low-current applications.

Features & Benefits

• Withstands challenging operating temperatures between -10°C and +80°C
• Compact dimensions of 70 (L) x 47 (W) x 21.7mm (D) make it a space-efficient choice for tight setups
• IP67 rating shows that it's dustproof and resists immersion in up to 1m of water for 30 minutes

Applications

• Assembly lines
• Engineering works
• Automotive industry

How durable is this limit switch?

This unit handles at least 10 million mechanical and 500,000 electrical operating cycles, so you can be sure of long-term service.

Miniature Enclosed Limit Switch D4MC Data Sheet
