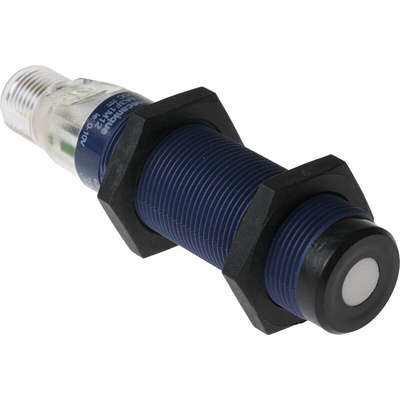

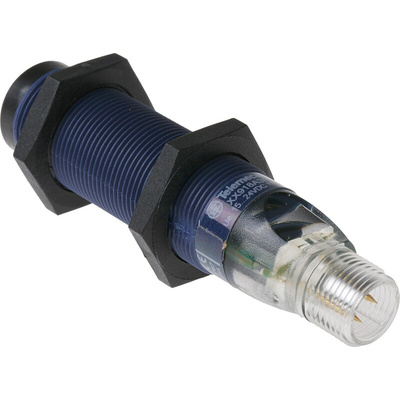

XX918A3F1M12, Telemecanique Sensors Ultrasonic Barrel-Style Proximity Sensor, M18 x 1, 50 → 500 mm Detection, Analogue Output,, Датчик

Cylindrical Ultrasonic 0-10V - 0.5m Sn

IP67 rated
Analogue 0 to 10V output
M18 cylindrical body
Operating distance: 0.5m adjustable using using teach mode
Overall beam angle: 6°
Operating temperature: -20 to 65°C
LED indication
Electrical connection: male connector M12 4 pins

OsiSense

Osisense ultrasonic sensors are ideal for use in many applications as detection of any material including metal, plastic, liquid and any colour is possible, the main types of applications are:

Food and Beverage processing.

• For liquid level detection without contact with the liquid


• Detection of powders


• Detection of glass bottles

Packaging.

• Detection of objects passing on a conveyor.

Automobile industry.

• Monitoring presence of car windscreens.
