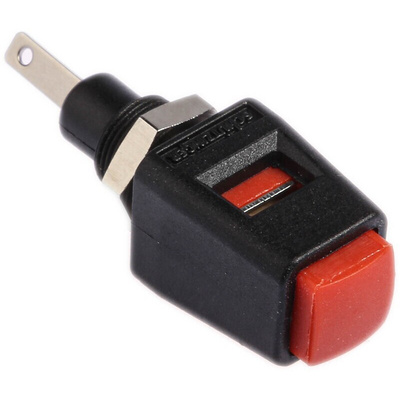

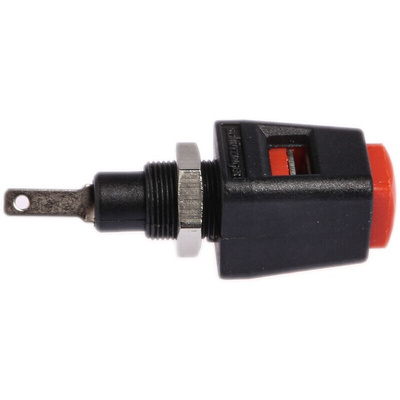

ESD 6554 / RT, Schutzinger Red Terminal Post, 5A

Schutzinger Quick Release Terminal Connector

The Schutzinger red, female quick release terminal connector is a 2.8mm tab programme connector. It is ideal for achieving quick contact with wires. The panel-mount terminal connectors feature a single pole are fully insulated and are utilised for the transmission of voltages, currents and electrical test data. It has a voltage rating of 30VAC and 60VDC and a current rating of 5A.
Schutzinger 4mm Programme Range
A comprehensive range of Schutzinger Terminal posts, quick release connectors and crocodile clips suitable for many applications, including testbeds, testing tools and various electronic devices utilising the 4 mm diameter programme and safety programme ranges.

Features and Benefits

Nickel contact plating
Brass contact material
Spring contact
Length is 38.9mm
Polyamide insulation material

Applications

Electronic devices
Testing tools
Test beds

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

ESD 6554_ESD 498 Data sheet
