POL 102 / SW, Schutzinger 4mm Black Terminal Post, 1kV, 100A, M8 x 0.75 Thread

Schutzinger Terminal Post

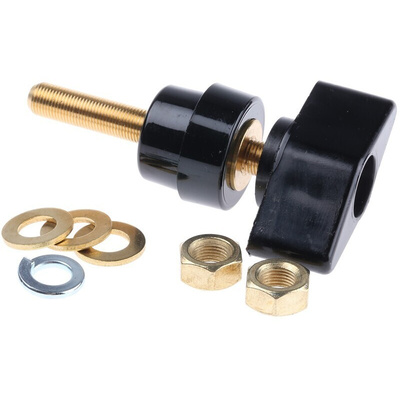

The Schutzinger black terminal post is a panel-mount connector pin with a single pole. The post is made of brass material. It is used for the transmission and testing of voltages and currents. The length of the pin is 81mm and the diameter is 4mm. Its voltage rating is 1kV and the current rating is 100A.
Note:
For associated SDK 502 connectors see: 753-1674 , 753-1677, 753-1671, 753-1665 , 753-1661.
Schutzinger 4mm programme range:
A comprehensive range of Schutzinger terminal posts, quick release connectors and crocodile clips that are suitable for many applications, including testbeds, testing tools and various electronic devices utilising the 4 mm diameter programme and safety programme ranges.

Features and Benefits

Thread size is M8 x 0.75
Non-detachable toggle head
Polycarbonate insulating ring
Panel thickness is 4mm maximum
Transition resistance is 0.4mohm
Opearting temperature ranges between -25°C and 115°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

POL 102/201 Data Sheet
