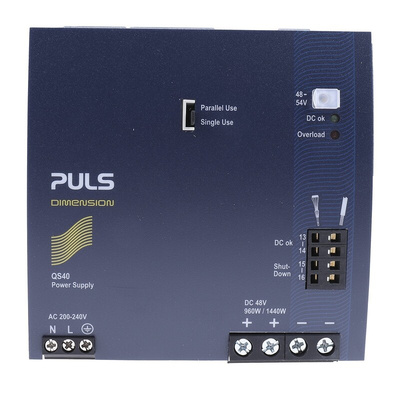

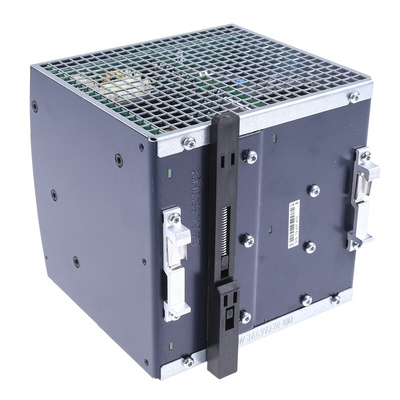

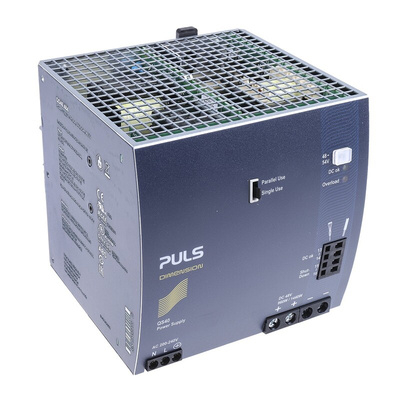

QS40.484, PULS DIMENSION Q Switch Mode DIN Rail Power Supply, 200 → 240V ac ac Input, 48V dc dc Output, 20A Output, 960W, Блок питания

PULS DIN Rail Power Supply

The PULS Dimension Q series single-phase DIN rail switch-mode power supply has an adjustable output voltage rating ranging between 48VDC and 54VDC with 20A and 30A current. This cost-optimised power supply is specifically designed with uncompromised quality and reliability for high performance. It is equipped with single-phase input voltage rating ranging between 200VAC and 240VAC. This power supplies diagnostic is easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED. High immunity to transients and power surges as well as low electromagnetic emission make it suitable to use in nearly every environmental condition.

Features and Benefits

Light and compact
Easy to install
Quick-connect spring-clamp terminals
Efficiency up to 95%
Power rating is 960W
Ripple factor and noise is 150mVpp
Negligible low inrush current surge
Safe hiccupPLUS overload mode
Current sharing feature for parallel use
Internal data logging for troubleshooting included
Remote control of output voltage
Operation temperature ranges between -25°C and 70°C

Applications

Industrial control
Automation
Communication and instrumentation equipment

Certifications

IEC
UL approved
EN
SELV
CE certified
GL
ATEX approved
IECEx approved
