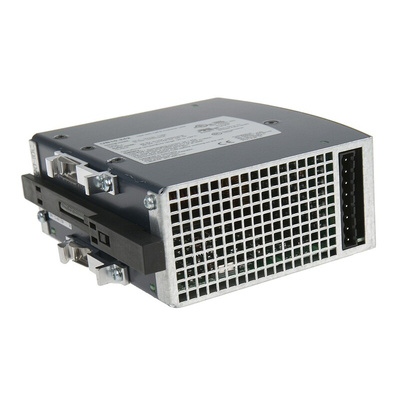

UB10.242, PULS DIN Rail UPS Uninterruptible Power Supply, 22.25V Output, ИБП

PULS Dimension UPS

The PULS uninterruptible power supply (UPS) controller UB10.242 is an addition to standard 24V power supplies to bridge power failures of remote or emergency systems that must be kept fully in operation (e. G. 72hrs). The DC-UPS includes an internal temperature sensor and a professional battery management system that charges and monitors the battery to achieve the longest battery service life, as well as, many diagnostic functions that ensure the reliable operation of the entire system. A unique feature of the UB10 series is that it requires only one 12V battery to buffer the 24V output. This makes matching batteries unnecessary and allows a precise battery charging and testing.

Features and Benefits

50% power reserves
Allows batteries between 17Ah and 130Ah
Comprehensive diagnostic and monitoring functions
Current rating is 10A
Electronically overload and short circuit protected
Input voltage is 22.5VDC to 30VDC
Output voltage is 22.25VDC
Replace battery signal included
Stable output voltage in buffer mode
Superior battery management for longest battery life

Applications

Communication
Industrial control
Instrumentation equipment
Office

Certifications

IEC 60950-1 standards
UL 508 standards
UL 60950-1 standards
