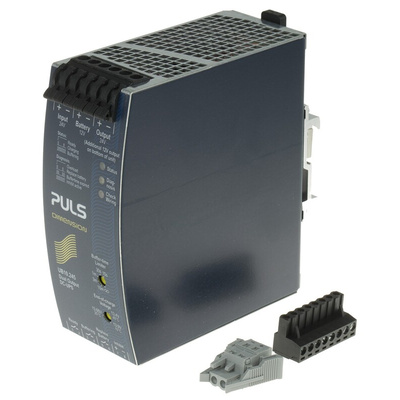

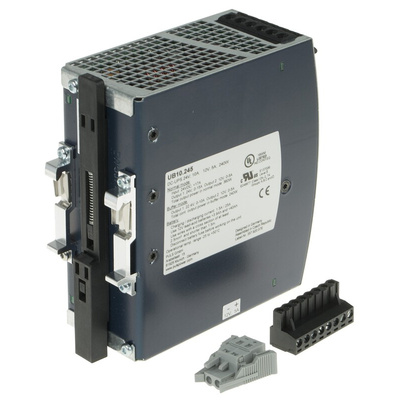

UB10.245, PULS 22.5 → 30V dc Input DIN Rail Uninterruptible Power Supply (360W), DIMENSION, ИБП

PULS Dimension UPS

The PULS UB10.245 uninterruptible power supply (UPS) controller along with a standard 24V power supply and one 12V battery that can bridge power failures or voltage fluctuations. This unit can supply and bridge both a 24V load, as well as, a 12V load at the same time. A DC/DC converter generates the12V is from the 24V output. Therefore, systems such as remote radio telemetry that utilize 24V control circuits and require 12V can be supplied with only one UB10.245 DC-UPS controller. The DC-UPS includes a professional battery management system that charges and monitors the battery to achieve the longest battery service life, as well as, many diagnostic functions that ensure the reliable operation of the entire system.

Features and Benefits

50% power reserves
Comprehensive diagnostic and monitoring functions
Current rating is 10A
Input voltage is 22.5VDC to 30VDC
Only one 12V battery required
Output voltage is 12VDC to 22VDC
Power rating is 360W
Replace battery signal included electronically overload and short circuit protected
Stable output voltage in buffer mode
Superior battery management for longest battery life

Applications

Communication
Industrial control
Instrumentation equipment
Office

Certifications

IEC 60950-1 standards
UL 508 standards
UL 60950-1 standards
