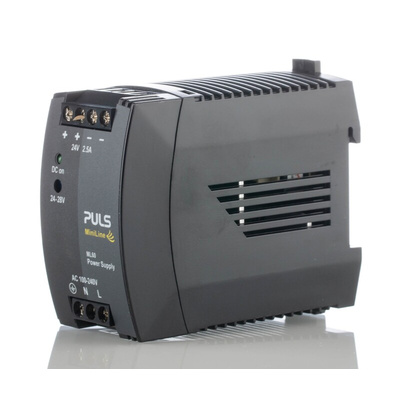

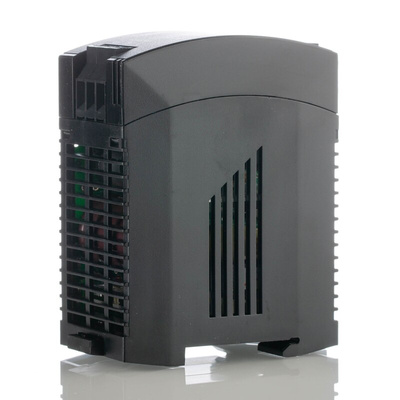

ML60.241, PULS MiniLine MLY DIN Rail Power Supply, 100 → 240V ac ac, dc Input, 24V dc dc Output, 2.5A Output, 60W, Блок питания

PULS DIN Rail Power Supply

The PULS MiniLine MLY series single-phase DIN-rail power supply have adjustable output voltage ranging between 24VDC and 28VDC with 2.5A and 2.1A current. This cost-optimised power supply is specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with an input voltage ranging between 100VAC and 240VAC/85VDC and 375VDC. A rugged electrical and mechanical design of robust plastic housing with a fine ventilation grid as well as a high immunity against electrical disturbances on the mains provides reliable output power.
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating at 60 and 70°C

Features and Benefits

Miniature size and lightweight
Quick and easy mount
Plug connector with screw terminations
Efficiency is up to 89.7%
Power rating is 60W
Ripple factor and noise is 50mVpp
Overload and short-circuit protected
Output LED indicator
Parallel mode for load sharing
Operation temperature ranges between -10°C and 70°C

Applications

Industrial control
Automation
Communication and instrumentation equipment

Certifications

EN 61000-6-3
CSA certified
UL approved
IP20 rated
NEC class 2 compliant
