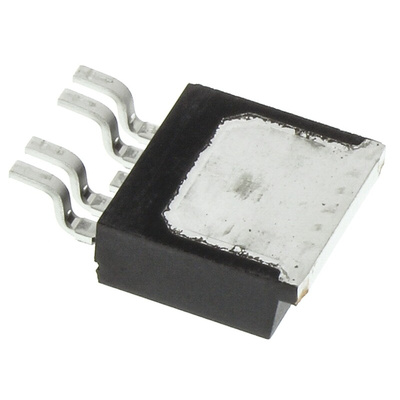

Infineon BTS441RGATMA1High Side, High Side Switch Power Switch IC 5-Pin, TO-263, Коммутатор питания

Smart Power High-Side-Switch One Channel 20 mΩ

N channel vertical power FET with charge pump, ground referenced CMOS compatible input with diagnostics feedback monolithically integrated in Smart SIPMOS technology

• Providing embedded protective functions


• Green Product (RoHS compliant)


• AEC Qualified

Summary of Features

• Fit for 12V and 24V application


• Overload protection


• Current limitation


• Short circuit protection


• Thermal shutdown


• Overvoltage protection (including load dump)


• Fast demagnetization of inductive loads


• Reverse battery protection with external resistor


• Open drain diagnostic output for over temperature and short circuit


• Open load detection in OFF-state with external resistor


• CMOS compatible input


• Loss of ground and loss of Vbb protection


• Electrostatic discharge (ESD) protection


• Very low standby current


• AEC qualified


• Green product (RoHS compliant)

Benefits

• Negative voltage clamped at output with inductive loads


• Flags a fail event (Status pin)


• Current limitation


• Very low standby current


• Thermal shutdown with restart


• ESD-Protection

Potential Applications

• Truck and Agriculture vehicle solutions (24V)


• Power train / clutch transmission


• Automotive Lighting


• Body Control Module


• Seat control


• Decentralized Mirror Module


• Decentralized Light Module


• Start&Stop transmission


• HEV Main Battery Pack


• Infotainment System

BTS441R, Smart Power High-Side-Switch
