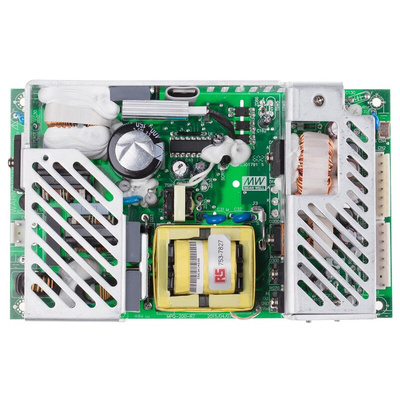

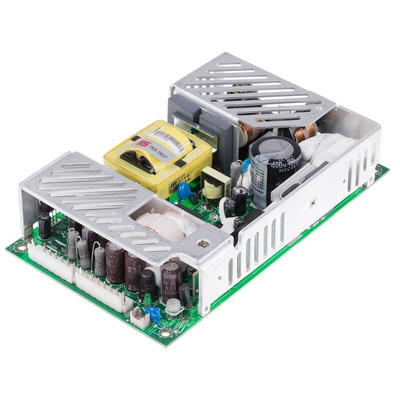

MEAN WELL Switching Power Supply, MPQ-200C, ±5V dc, 2 A, 5 A, 15 A, 140W, Quad Output, 127 → 370 V dc, 90, Источник питания

Mean Well 200W Medical Open Frame AC-DC Power Supply - MPS-200, MPD-200, MPT-200, MPQ-200 Series

A range of single output, dual output, triple output and quad output 200W open frame AC-DC switch mode power supplies with universal AC input and medical approval to UL60601-1. These open frame AC-DC switch mode medical power supplies have a compact design, high efficiency, low ripple and noise and are equipped with a built in EMI filter.

Universal AC input
Medical approval UL60601-1
Free air convection for 140W and forced air convection for 200W
High efficiency of up to 87%
Low leakage current of <180μA
Short circuit, overload, over voltage and over temperature protection
Fixed switching frequency at 100 KHz
Power good and fail signal output
Built-in remote ON-FF control and remote sense function
Built in EMI filter
EMC compliance to EN55011 (CISPR11) Class B, EN55022, Class B
Harmonic current compliance to EN61000-3-2,-3

Note

MTBF to MIL-HDBK-217F (25°C)
With 25CFM forced air cooling derate power above 50°C. For Convection cooling derate power above 40°C
For suitable connection kit see stock number 764-7120

Standards

UL60950-1, TUV EN60950-1, UL60601-1, TUV EN60601-1, IEC60601-1 approved

Approvals

cULus, TUV, CB, PFC, CE
