Vox Power Switching Power Supply, Nevo+600M Front End 600W, Quad Output, 120 → 300 V dc, 85 → 264 V ac, Источник питания

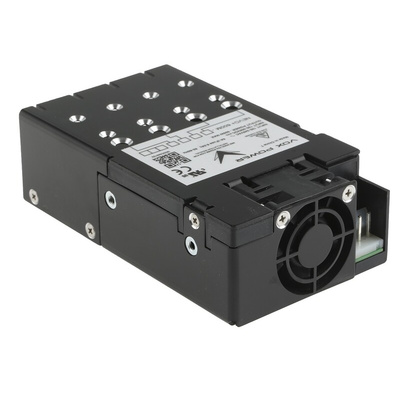

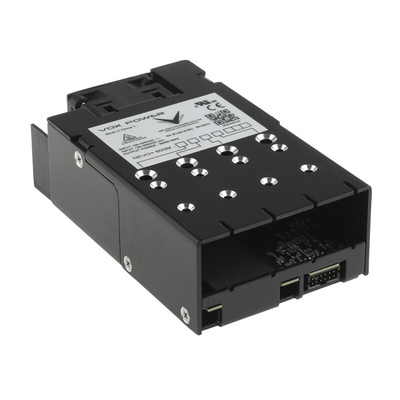

Vox Power 600 W Front End Input Module for AC-DC Medical Modular Power Supply - NEVO+600M

NEVO+600M 600 W AC-DC modular power supply front-end input module that delivers a full 600 W at line voltages of ≥ 120 V ac. The front-end input module has four slots into which isolated output modules can be fitted. Output modules can be connected in parallel or series to achieve higher output currents or voltage. By selecting the correct output modules, a custom power solution can be configured offering high-power density and efficiencies of up to 89%. NEVO+600M input module has adjustable voltage control for each output module and a high-power density of 25 W/in³.
The NEVO+600M module utilises a noise reduction fan through the implementation of a control circuit. The fan speeds up and slows down with variations in temperature and loading which is critical in many applications.

Features and Benefits

• Vox Power Modular Front End
• 600 Watt Medically Approved Front End.
• 4 Ouput Module Slots
• AC Input Voltage Range - 85VAC TO 264VAC
• 3 X 5 X 1.6 Inches ( 129.7 x 77.7 x 41.5mm)
• Use any combination of modules 1,2,3,4,5 and 8 in slots A,B C and D

Compatible Modules

O/P 1, 2, 3, 4, 5, 6, & 7 in Slots A, B, C & D

Derate Power

Derate power above 50°C
Derate power below 120 V ac line voltage

Output Module

For output modules see stock numbers 753-8032 753-8041 753-8044 753-8048 753-8057 753-8050 753-8054

Accessories

Series links see stock number 753-8076
Parallel links see stock numbers 753-8060, 753-8079 and 753-8072
Cable sets see stock numbers 753-8082 and 753-8091
I²C interface see stock number 753-8066
S-Track interface see stock number 753-8063
Module blanking plate see stock number 753-8038

Approvals

IEC 60601-1(ed.3), IEC 60601-1(ed.3); am1
