Vox Power Switching Power Supply, Nevo+600S-2-2-2-2, 12V dc, 15A, 600W, Quad Output, 120 → 370 V dc, 85 →, Источник питания

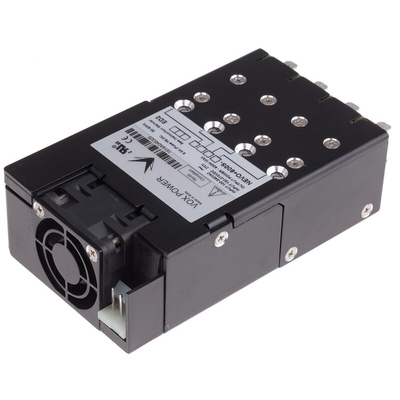

Vox Power 600 W Pre-Configured Modular AC-DC Power Supply - NEVO+600S-2-2-2-2

NEVO+600S 600 W pre‐configured enclosed modular power supply with a compact 5 x 3 inches x 1 U footprint. Delivering a full 600 W at line voltages of ≥ 120 V ac. Each of these 600 W modular power supplies consists of an input module together with four isolated output modules. They can be connected in series or in parallel to provide higher voltage or current outputs (see table for details). The NEVO+600S module utilises a noise reduction fan through the implementation of a control circuit. The fan speeds up and slows down with variations in temperature and loading which is critical in many applications.
Typical applications supplies include test and measurement, LED lighting, factory automation, Broadcast equipment, industrial lasers and optical inspection.

Features and benefits

• Vox Power Configured Product Solution
• Total Output Power: 600 Watts
• Number of Outputs: 4
• Voltage Range (Each Output): 4.5V To 15V
• AC Range: 85VAC To 264VAC
• Output Power of each module: 150W
• Use Accessory Par4Link (753-8072) To Parallel Connect Modules

Note

Derate power above 50°C
Derate power below 120 V ac line voltage
For series links see stock number 753-8076
For parallel links see stock numbers 753-8060, 753-8079 and 753-8072
For cable sets see stock numbers 753-8082 and 753-8091
For I²C interface see stock number 753-8066
For S-Track interface see stock number 753-8063
For module blanking plate see stock number 753-8038

Standards

IEC 60950-1(ed.2), IEC 60950-1(ed.2); am1, IEC 60950-1(ed.2); am2

Switch Mode - Vox Power 600W, NEVO600 Series

Nevo+600S Pre-configured Modular AC/DC Power Supply - 2-2-2-2

nevo600 AC/DC Modular Power Supply - User Manual
