Vox Power Switching Power Supply, Nevo+600S-4-4-4-4, 58V dc, 3.75A, 600W, Quad Output, 120 → 370 V dc, 85, Источник питания

Vox Power AC To DC Modular Power Supply

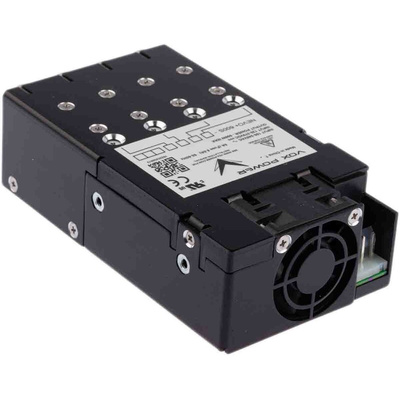

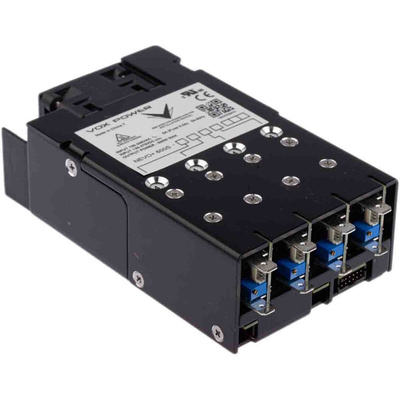

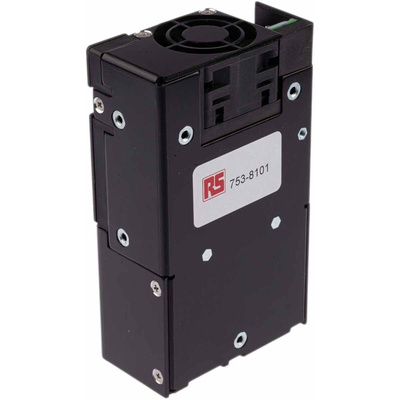

The Vox Power 600W quad output isolated modular power supply has an output current of 3.75A at 18VDC to 58VDC. It has an isolated output module used with an AC-DC front-end input module. The single output isolated module can be connected in parallel and series within the same chassis to achieve higher output current or voltage. It utilises a noise reduction fan through the implementation of a control circuit. The fan speeds up and slows down with variations in temperature and loading which is critical in many applications.

Features and Benefits

Output voltage range between 30V to 58V
Power configurable product output module

Applications

Test and measurement
LED lighting
Factory automation
Broadcast equipment
Industrial lasers
Optical inspection

Nevo+600S Pre-configured Modular AC/DC Power Supply - 4-4-4-4

nevo600 AC/DC Modular Power Supply - User Manual
