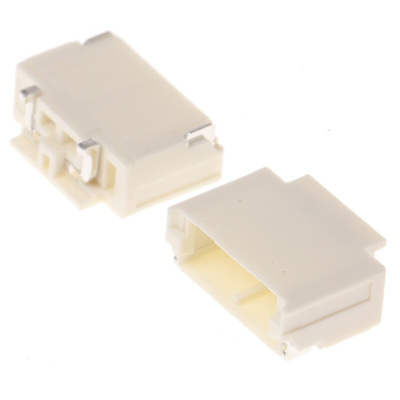

SM02B-LEASS-TF (LF)(SN), JST LEA Series Right Angle PCB Socket, 2-Contact, 1-Row, 1.8mm Pitch, Crimp Termination

JST 1.8 mm Wire to Board LEA Connector

The JST LEA Connector 1.8 mm pitch System provides is low profile with a PCB height of only 3 mm suitable for LED lighting. The LEA Connector System has a secure, polarising locking mechanism between the housing and header. The contacts of the LEA Connector System feature a lance for secure fitting into the housing. All models are highly reliable and excellent quality.

Contacts are supplied crimped to 30 AWG red UL1571 cable.

1.8mm Wire to Board - JST LEA Connector

The JST LEA Range of SMT connectors is specifically designed for LED lighting applications with a pitch of 1.8 mm and a low profile of 3 mm. The design of the LEA range includes a Lock to give an assured connection in applications where cable handling occurs. The housings and headers of the LEA range are polarized to prevent incorrect insertion.

Datasheet
