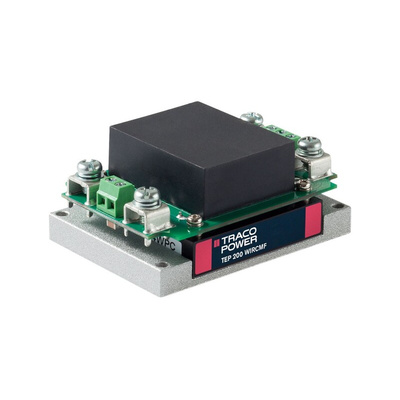

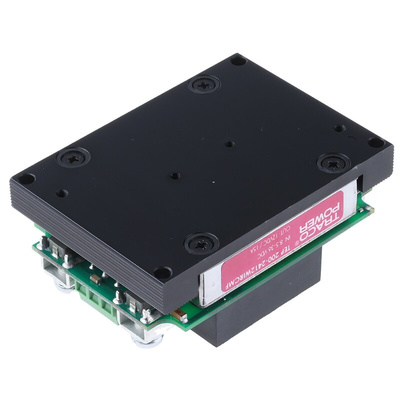

TEP 200-2412WIRCMF, TRACOPOWER TEP 200WIR DC-DC Converter, 12V dc/ 15A Output, 8.5 → 36 V dc Input, 180 → 240W, Chassis, Преобразователь

Traco 180-240W Chassis Mount Railway Compliant DC-DC Converter - TEP-200WIR Ser

180-240W single output isolated PCB mount DC-DC converters with a wide 4:1 input voltage range, adjustable output voltage and a high efficiency of up to 91% allowing full power operation without forced air cooling at 25°C. These railway compliant isolated DC-DC converters are chassis mount with a screw terminal block and have an integrated EMI filter to meet EN 55022 class A.

Wide 4:1 input voltage range
Integrated EMI filter to EN 55022, class A
Adjustable output voltage
EN 50155 approval for railway applications
High efficiency
No minumum load
Soft start
Sense line
Remote On/Off input
Reverse input voltage, overtemperature, short circuit and over voltage protection
EMC compliance: EN 55022 class A without external components

Note

A DIN rail mounting kit is available, see stock number 745-1102
MTBF to MIL-HDBK-217F, at +25°C
Derating approx. 1.2 %/K above +25°C (see datasheet)

Standards

EN 50155, UL 60950-1, IEC/EN 60950-1
