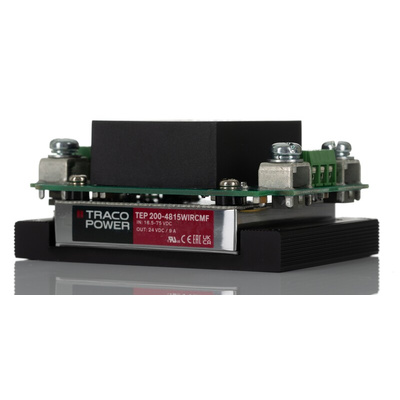

TEP 200-4815WIRCMF, TRACOPOWER TEP 200WIRCMF DC-DC Converter, 24V dc/ 9A Output, 18 → 75 V dc Input, 210W, Chassis Mount, +75°C Max, Преобразователь

Traco Power DC-DC Converter, Remote On/Off, 48V DC Nominal Input Voltage - TEP 200WIR Series - TEP 200-4815WIRCMF

On the hunt for a device to safely step down power for your industrial system? Seek out this DC-DC converter from Traco Power. It's a versatile option that accepts a wide supply voltage range between 16.5 and 75V DC. By delivering a dependable 24V DC output, it keeps standard applications running without a hiccup. The unit comes with built-in EMI protection to prevent electrical disruption putting a spanner in the works. Sturdy metal housing means it's a tough nut to crack, even under sustained mechanical stress.

Features & Benefits

• Compact dimensions of 85 (L) x 61 (W) x 40.5mm (D) mean it's space-saving
• 90% efficiency for minimal energy waste
• Light 287g weight adds minimal load to your setup
• 210W output drives demanding applications
• 0.2% line and load regulation for reliably accurate performance

Applications

• Railway industry
• Industrial automation
• Robotics systems

Can I use this component in harsh settings?

Yes, it has a broad operating temperature range of -40°C to +75°C, so it's ideal for use in challenging environments.
