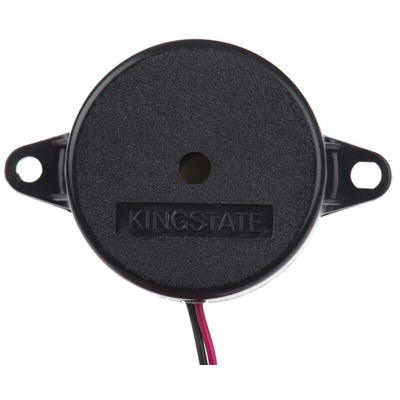

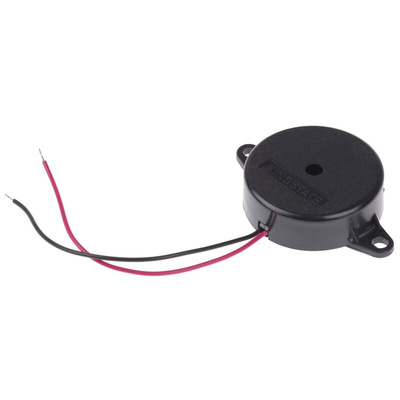

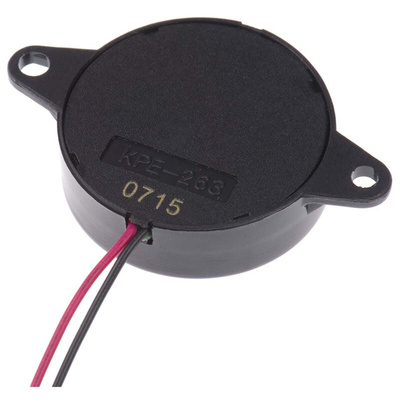

RS PRO 85dB Panel Mount Continuous Internal Piezo Buzzer, 30 (Dia.) x 10mm, 3V dc Min, 30V dc Max

RS PRO 9 V DC, Panel Mount Buzzer, 86 dB Continuous

Operating on a low current of just 11 mA, this handy RS PRO piezo buzzer offers a safe and simple solution to generate sounds from electronic equipment. It can be easily wired to emit a continuous tone of up to 86 dB.

The buzzer features internal circuitry and is directly mountable onto a printed circuit board (PCB). Its flying leads enable quick connections, while its ABS (acrylonitrile butadiene styrene) construction makes it shockproof and resistant to chemicals. It generates sounds with a much greater pressure level when compared to magnetic buzzers.

This product has been thoroughly tested to meet the high standards of the RS PRO range. You can use it in a wide temperature range between -30°C and +85°C. Piezo Buzzer components such as this are typically found in alarms and warning devices, as well as telephones.

Features and Benefits

• Continuous piezo buzzer
• Sound level of 86 dB
• Internal drive
• Panel mounting
• Dimensions of 30 mm x 10 mm
• Supply current of 11 mA
• Minimum operating temperature of -30°C
• Maximum operating temperature of +85°C
• Minimum supply voltage of 3 V (DC)
• Maximum supply voltage of 30 V (DC)
• Frequency range of 3000 Hz to 4 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Continuous tone piezo 9Vdc 86dB

RS PRO Datasheet
