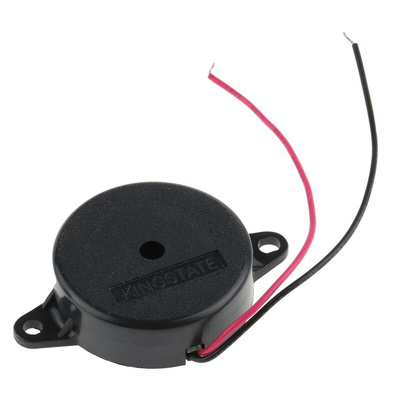

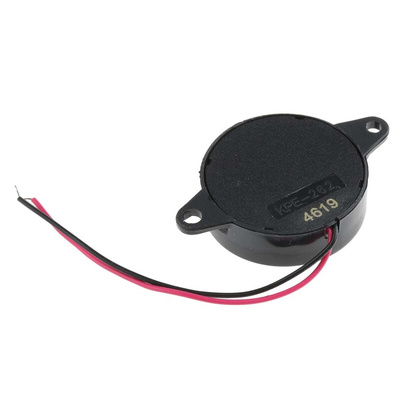

RS PRO 85dB Panel Mount Continuous Internal Piezo Buzzer, 30 (Dia.) x 10mm, 3V dc Min, 30V dc Max

7541999
Производитель: RS PRO
Цена за шт.
1446.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 3-30 V, Panel Mount Buzzer, 86 dB Continuous

Generate sounds from your electronic equipment with this piezo buzzer from RS PRO. It's easy and safe to wire up and will emit a continuous tone of up to 86 dB.

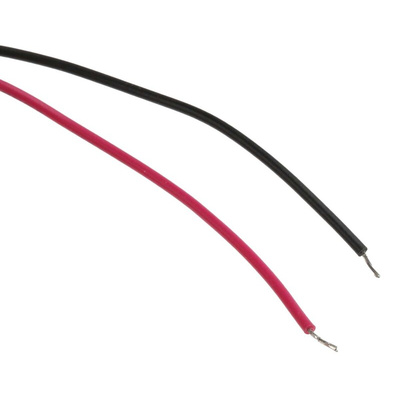

This buzzer has flying leads for quick connections and its ABS (acrylonitrile butadiene styrene) outer construction makes it highly shock- and chemical-resistant. Thanks to its internal circuitry, it can be mounted directly onto a printed circuit board (PCB). This piezo buzzer component generates sounds with a much greater pressure level in comparison to magnetic buzzers. It can operate with a relatively low current of 13 mA.

This buzzer is safe for use at temperatures ranging from -30°C to +85°C. It's been stringently tested to meet RS PRO standards. You'll typically find it in alarms and warning devices, as well as telephone dial tones and toy or game sounds.

Features and Benefits

• Continuous piezo buzzer
• Sound level of 86 dB
• Internal drive
• Panel mounting
• Dimensions of 30 mm x 10 mm
• Supply current of 24 mA
• Diameter of 26 mm
• Height of 15.55 mm
• Minimum operating temperature of -30°C
• Maximum operating temperature of +85°C
• Minimum supply voltage of 3 V (DC)
• Maximum supply voltage of 30 V (DC)
• Frequency range of 2000 Hz to 3 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Высота:
10мм
Диаметр:
30мм
Максимальная частота:
3кГц
Максимальное напряжение питания:
30В пост. тока
Минимальная частота:
2000Гц
Минимальное напряжение питания:
3В пост. тока
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-30°C
Размеры:
30 (диаметр) x 10мм
Тип монтажа:
Крепление на панель
Тип привода:
Внутренний
Тип сигнала:
Continuous
Ток питания:
13мА
Уровень звучания:
85дБ
