RS PRO 92dB PCB Mount External Magnetic Buzzer Component, 9 (Dia.) x 4.5mm, 2V Min, 4V Max, Зуммер

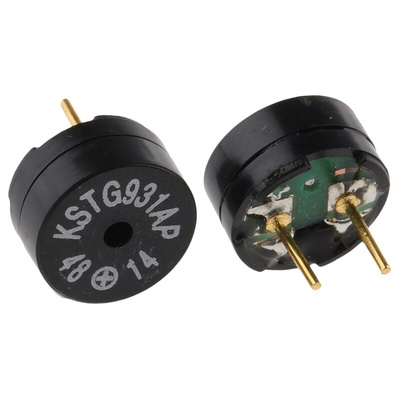

RS PRO 4 V Electromagnetic Buzzer, 92 dB

Need an easy way to create a loud buzzing noise? Choose this electromagnetic buzzer from RS PRO for 92 dB of continuous buzzing output. It's suitable for use in a range of domestic and business settings, including homes, garages and industrial plants.


For ease of installation, you can mount this component directly onto a PCB (printed circuit board). Its lightweight design means it's suitable for installation on surfaces with a low load-bearing capacity.


Use this component in applications such as automotive warning alerts, doorbells and pest deterrents. The buzzer requires an external drive to operate.

Features and Benefits

• Dimensions of 9 (diameter) x 4.5 mm (height)


• External drive type


• Maximum frequency of 2.73 kHz


• Maximum operating temperature of +60°C


• Minimum operating temperature of -20°C


• Maximum supply voltage of 4 V


• Minimum supply voltage of 2 V


• Sound level of 92 dB


• Supply current of 80 mA

Transducer PCB magnetic 3Vpp 92dB
