RS PRO Omni-Directional, Lead Wire 6mm Microphone Condenser, -42dB

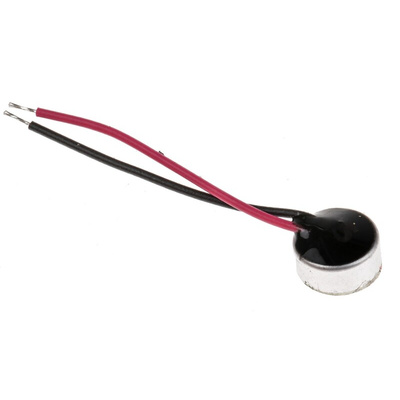

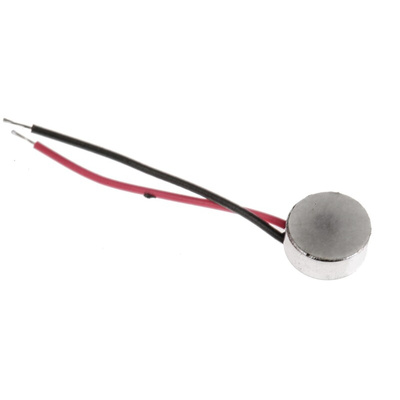

RS PRO 6mm Omni-Directional Condenser Microphone

A 6mm condenser microphone with a 25mm lead wire termination with omni-directional directivity designed to pick up sound from all directions.
At only 6mm in diameter with a thickness of 2.7mm the omni-directional microphone is ideal for use in small devices.
Terminated with a simple solder termination the condenser microphone insert is easy to use and easy to install. A high-quality microphone insert a sensitivity of -42dB for an accurate and clear sound capture suitable for a wide range of applications and equipment.

Features and Benefits

• Condenser microphone insert


• Omnidirectional pick up


• Sensitivity of -42dB


• Standard operating voltage of 2V


• Maximum operating voltage of 10V


• Frequency range of 100 to 20000Hz


• Signal to noise ratio of 57dBA


• IP57 rated


• Wire terminals


• Solder termination


• Aluminium construction


• Operating temperature range of -20 to 70°C


• 25mm UL1571 lead/ 32 AWG


• Dimensions of 6 x 2.7mm


• Weight of 0.22g

Standards and Approvals: RoHS compliant
