1300060241, Brad from Molex Straight Female 3 way 7/8 in Circular to Unterminated Sensor Actuator Cable, 6.1m, Кабельная сборка

Brad® Mini-Change® A-Size Single Ended Pigtail Female Cordsets

Brad® Mini-Change® single-ended pigtail female cordsets: A-Size, straight, internal thread with PVC connector face and body. The cable for these Brad® Mini-Change® single-ended pigtail female cordsets are:

For Part numbers containing "A01" cable is UL Type ST00W, hard service cord and is resistant to water, oil and abrasion
For Part Numbers containing "P78" cable is Black PUR with #18-2, #22-12 conductors
For Part Numbers containing "F030" cable length is 3 ft [0.91 m]
For Part Numbers containing "F060" cable length is 6 ft [1.83 m]
For Part Numbers containing "F120" cable length is 12 ft [3.66 m]
For Part Numbers containing "F200" cable length is 20 ft [6.1 m]
For Part Numbers containing "M050" cable length is 5 m
For Part Numbers containing "M100" cable length is 10 m

Quad Beam female contacts for high reliability and low resistance
Epoxy coated coupling nut for corrosion and weld slag resistance
IP67 rated

Approvals

UL File N0.:E152210
CSA File No.:LR6837

BRAD Mini-Change

The Molex Brad Mini-Change Connector was the first quick-connect alternative to hardwiring and are noted for their quality and durability. The Brad Mini-Change Connector uses a Quad Beam design female contact to ensure conductivity. Rated at IP67 the Brad Mini-Change connectors can provide reliable solutions in a wide range of applications. The design of these Brad Mini-Change Connectors incorporates anti-vibration features, integral Strain Relief and Key Indicator.

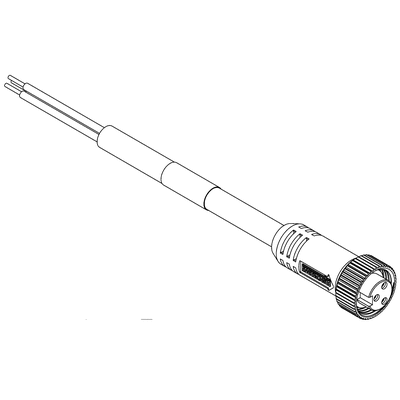

Mini-Change Cordset A-size 3 Pole female Drawing
