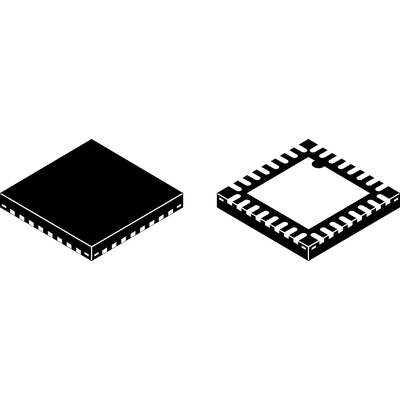

MRF89XA Sub-1GHz RF Transceiver
The MRF89XA is a single chip, multi-channel FSK/OOK transceiver capable of operating in the 863-870MHz and 902-928MHz ISM frequency bands, as well as the 950-960 MHz frequency band.
RF Frequency Ranges: 863 to 870, 902 to 928 and 950 to 960MHz ISM bands
RF Output Power: +12.5dBm
Receiver Sensitivity: -107dBm @ 25kbps FSK
Modulation: FSK, OOK
OTA Data Rate: up to 200kbps
Supports packet handling, data whitening and automatic CRC generation
Supports Manchester encoding/decoding
Incoming sync word (pattern) recognition
Bit synchronizer for incoming data and clock synchronization/recovery
Supports proprietary sub-1GHz wireless protocols
Digital RSSI
64-byte Tx/Rx data FIFO
Host communication: serial SPI
Supports power-saving modes
Power supply: +2.1 to +3.6Vdc
Operating temperature range: -40 to +85°C
Applications: Home/Industrial Automation, Remote Control, Wireless PC Peripherals, Remote Keyless Entry, Vehicle Sensor Monitoring, Telemetry, Local communication for the Internet of Things (IoT)
Approvals
ETSI, FCC
