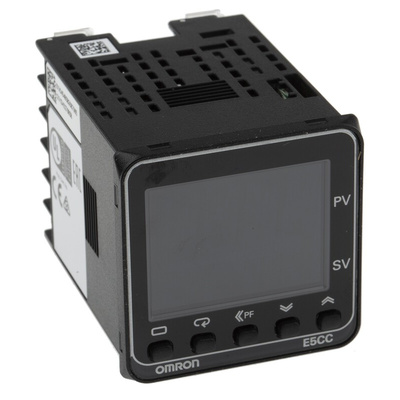

E5CC-QX3A5M-000, Omron E5CC PID Temperature Controller, 48 x 48mm, 1 Output Voltage, 100 → 240 V ac Supply Voltage, Регулятор температуры

E5CC Digital Temperature Controller

Omron’s E5CC range of temperature controllers are a premium PID based controller that support a wide variety of applications. Covering a comprehensive array of sensor inputs including a universal input, Thermocouple, PT as well as Analogue current/voltage inputs. The E5CC range of temperature controllers offer various configurations to exactly suit your program and application requirements for a reliable and easy to use system.

The controller’s compact 48 x 48 mm unit is an industry standard size and can fit in to most typical system units for a fast and effortless installation. Featuring a large white PV display, the E5CC’s large 15.2 mm LED characters provide increased visibility in any application.

PID control within the E5CC range can be set to separately control heating and cooling processes. This functionality allows for programming to control different systems with response characteristics specified to each application. Auto-tuning of PID control functions allow initial parameters to be configured quickly and easily for smooth fast installation and commissioning. The E5CC range also features standard ON/OFF control for more basic applications.

Features and Benefits

• Large white LCD display
• 15.2 mm characters
• Dual PV/SV 4-digit display
• 50 ms high-speed sampling
• Short 60 mm housing case
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

CE

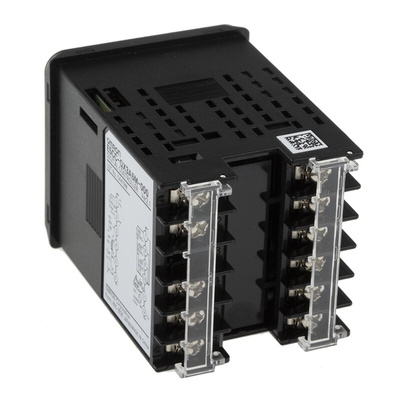

Omron E5CC Temperature Controller, Screw Termination, 48X48mm - E5CC-QX3A5M-000

This is a compact and user-friendly temperature controller from the E5CC series. It offers precise control performance, easy setup, and exceptional visibility. With a fast sampling period of 50 ms, this controller ensures accurate and responsive temperature control. Additionally, it supports both 2-PID control with auto-tuning and simple ON-OFF control for less demanding applications. The high-quality LCD display enhances visibility and usability.

Features & Benefits

• The E5CC series ensures accurate and responsive control with a fast sampling period of 50ms
• User-friendly interface simplifies configuration and installation
• High-quality LCD display provides clear information at a glance
• Omron’s 2-PID control algorithm further optimises control accuracy
• Supports both ON/OFF control and more demanding applications

Applications

• Used in various manufacturing and production processes requiring temperature control
• Ensures efficient heating, cooling, and ventilation in buildings
• Regulates temperatures in ovens, refrigerators, and cooking equipment

Can I operate the E5CC-QX3A5M-000 without an external power supply?

Yes, this controller operates intuitively via CX-Thermo without requiring an additional power source.

What type of input does it support?

The E5CC-QX3A5M-000 accepts inputs from thermocouples, RTDs, and linear sensors.

Is it suitable for simple control applications?

Yes, In addition to precise control, it also supports simple ON/OFF control for less demanding scenarios
