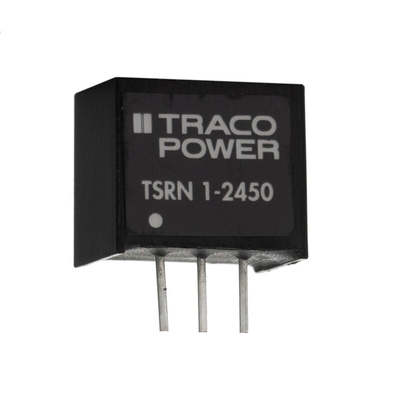

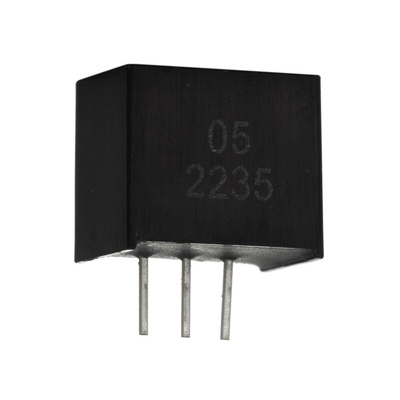

TSRN 1-2450, TRACOPOWER Switching Regulator, Through Hole, ±5V dc Output Voltage, 6.5 → 31 V dc, 6.5 → 42 V dc Input, Импульсные стабилизаторы

Traco Power Switching Regulator, Single Output, 50mV Pk-Pk Ripple and Noise - TSRN 1 Series - TSRN 1-2450

Make tailoring direct current to your needs a snip with this power switching regulator from Traco Power. It's an ideal choice for low-power applications, as it uses an input voltage between 6.5 and 42V DC to generate a 5V DC output. As it's a SIP-type package, its components are parcelled up efficiently inside compact dimensions of 11.7 (L) x 7.5 (W) x 10.2mm (D), so it fits neatly into busy setups. Inbuilt overtemperature and short-circuit protections fend off electrical hazards, while the UL 94 V-0-rated silicone potting self-extinguishes within 10 seconds to boost workplace safety. The regulator's plastic housing withstands impacts and abrasion to deliver a long service life.

Features & Benefits

• Operating temperature range between -40°C and +85°C for reliable performance in challenging environments
• Mean time between failures of 20 million hours indicates reliability
• Through-hole mounting for fast and secure installation
• Complies with EN 61373 for safe use in railway applications

Applications

• Industrial automation
• Power supplies
• Transportation industry

Do I need a heat sink with this product?

No. This component runs at up to 83% efficiency, so there's little thermal energy created as a by-product of operation.

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
