TSRN 1-2433A, TRACOPOWER Switching Regulator, Through Hole, ±3.3V dc Output Voltage, 4.6 → 32 V dc, 4.6 → 42 V dc Input, Импульсные стабилизаторы

Traco 1A SIP Step Down Switching Regulator - TSRN-1 Series

TSRN-1 Series 1A step-down switching regulators with a wide input voltage range of up to 42 Vdc and a high efficiency of up to 95% which allows full load operation without the need for a heatsink or forced air cooling. These TSRN-1 Series 1A step-down switching regulators are suitable for positive and negative output circuits (please refer to table for additional data). Excellent line and load regulation and a low standby current makes these TSRN-1 switching regulators ideal for use in energy sensitive applications.

Input voltage range up to 42 VDC
Built in filter capacitors
No heat-sink required
Over-temperature and short circuit protection
Low standby current: 1 mA for <= 3.3 Vdc output models, 3 mA for >= 5.0 Vdc ouput models
SIP package fits existing TO-220 footprint
Pin compatible with LMxx linear regulators

Note

Part numbers: TSRN 1-xxxx have straight pins

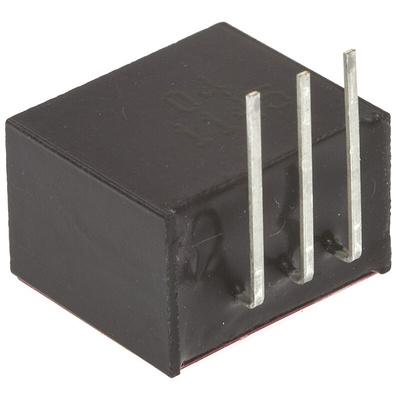

Part numbers: TSRN 1-xxxxA have angular pins
MTBF: MIL-HDBK-217 @ +25°C
Derating: 2.7 %/K above +70°C
For input voltages higher then 36 Vdc an input capacitor 22 μF/ 50 V is required

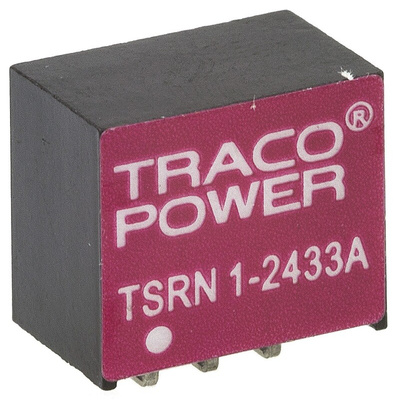

Traco Power Switching Regulator, +85 °C Maximum Temperature, -40 °C Minimum Temperature - TSRN 1-2433A

This Traco Power switching regulator serves as a high efficiency power supply and DC voltage regulator, ensuring reliable performance for various applications across different industries.

Features & Benefits

• Through hole mounting for secure installation
• Low ripple and noise for clean power output
• Compact SIP package for space saving design
• Wide input voltage range for versatile compatibility
• Reliable MTBF of 6000000 h for long term use
• Regulated output voltage of ±3.3 V dc for consistent power delivery

Applications

• Ideal for automation systems requiring precise power regulation
• Suitable for electronics projects demanding efficiency and stability
• Perfect for electrical setups where low ripple and noise are critical
• Essential for mechanical applications needing reliable power sources

Can it provide stable power output for automation systems?

Yes, the Traco Power switching regulator ensures precision in power management, making it ideal for automation applications.

Will it fit securely in electronics projects with its through hole mounting feature?

Yes, the through hole mounting design of this regulator ensures a stable installation in various electronic setups.

Is it suitable for applications that require low ripple and noise?

Yes, the Traco Power switching regulator offers low ripple and noise levels, making it perfect for setups where clean power is essential.

Can it handle a wide input voltage range for different electrical requirements?

Yes, this regulator provides a wide input voltage range, ensuring compatibility with various electrical specifications.

Does it come with a reliable MTBF for long-term performance assurance?

Yes, with an MTBF of 6000000 h, this Traco Power switching regulator guarantees reliability in power delivery over an extended period.
