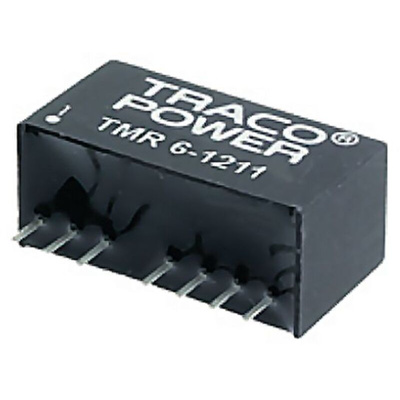

TMR 6-1211, TRACOPOWER TMR 6 DC-DC Converter, 5V dc/ 1.2A Output, 9 → 18 V dc Input, 6W, Through Hole, +70°C Max Temp -40°C, Преобразователь

Traco 6W Isolated SMD SIP-8 DC/DC Converters - TMR 6 Series

TMR 6 series 6W isolated DC/DC converters with regulated output and an ultra-compact SMD SIP-8 package with a small 2.0cm² footprint. These 6W isolated TMR 6 series DC/DC converters have a high power density, a high efficiency of up to 84 % and remote On/Off control. The compact dimensions of these DC/DC converters make them ideal for use in space critical applications.

Ultra compact SIP-8 package
2:1 input voltage range
High efficiency of up to 84%
Indefinite short-circuit protection
Full SMD design
I/O isolation 1500 VDC
Remote On/Off control

Note

MTBF: MIL-HDBK-217F @ +25°C
Derating: 3.3 %/K above 55°C
The load regulation for dual output models will be 5.0% where a 25%/100% unbalanced load is drawn

Standards

IEC/EN 60950-1, UL 60950-1

Approvals

cULus

Traco Power TMR 6 Series DC-DC Converter, 83% Efficiency, Through Hole Mount - TMR 6-1211

This compact DC converter is the ideal solution for applications in automation, electronics, electrical, and mechanical industries. With its regulated 5V output, high efficiency, and compact SIP package, this converter stands out for its reliability and performance in various settings. This series is designed to provide a wide input voltage range and continuous short circuit protection, making it a versatile choice for critical applications.

Features & Benefits

• Provides a stable 5V output voltage for consistent performance
• Accepts 12V DC input with a range from 9V to 18V DC
• Operates with an efficiency of up to 83% for optimal power usage
• Easy installation with through hole mounting type for secure placement
• Offers 1.5 kV DC isolation for safety and protection

Applications

• Suitable for use in automation systems requiring a reliable power source
• Ideal for electronics projects that need a stable 5V output
• Perfect for electrical installations where space-saving and efficiency are crucial
• Used in mechanical devices for regulated power distribution

Can it be used in applications with varying input voltages?

Yes, it accepts a wide input voltage range from 9V to 18V DC.

Will it provide a stable 5V output for my electronics project?

Yes, the converter ensures a regulated 5V output for consistent performance in electronics applications.

Is the through-hole mounting type suitable for secure installation?

The through-hole mounting design of the converter allows for easy and secure installation in various setups.

Can I rely on the isolated design of the Traco Power TMR 6-1211 for safety?

Yes, the 1.5 kV DC isolation of the converter ensures safety and protection in your applications.
